    Connecting MSU-M0149-1, MSU-M0107, and VOXL 2 Time of Flight (TOF) Depth Sensor

    System Architecture Design Reviews
    3
    6
    36
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • ModeratorM
      Moderator ModalAI Team
      last edited by

      We need to connect the following: Forward Facing MSU-M0149-1, MSU-M0107, and VOXL 2 Time of Flight (TOF) Depth Sensor
      Sensor with Adapter PCB and M0177 Starling Flex (Molex 40-pin) and a second TOF Depth Sensor in the Rear of our platform as well facing downward. We seem to not be able to figure out which connector works from the TOF we have (MSU-M0178-1-01) with any of the connectors or adapter we have purchased. Do we need to instead be using the (MSU-M0169-1-01) TOF sensor and PCB? Or is there a way to buy the connector and PCB separately to use with the ones we have?

      ModeratorM 1 Reply Last reply Reply Quote 0
      • ModeratorM
        Moderator ModalAI Team @Moderator
        last edited by

        The easiest way to connect an IMX412, AR0144 and TOF would be to follow the Starling 2 architecture found here: https://docs.modalai.com/voxl2-d0014/

        To just connect the TOF directly to VOXL 2, the M0172 is likely what you are looking for: https://www.modalai.com/products/mdk-m0172-1-00

        Q 1 Reply Last reply Reply Quote 0
        • Q
          QSL @Moderator
          last edited by

          @Moderator So to confirm, we need the M0173 to connect the 3 front sensors then the M0172 for the single rear TOF, what cables would we use that are the longest ones available to then connect to the Voxl2 ports?

          Thanks!

          Q 1 Reply Last reply Reply Quote 0
          • Q
            QSL @QSL
            last edited by

            BTW We currently have a hadnful of what seems to be the incorrect adapters listed here:

            2x VOXL 2 Mini 40-Pin Connector TOF Adapter (MDK-M0172-1-00)
            2x VOXL to VOXL 2 Image Sensor Interposer
            2x VOXL 2 Dual Image Sensor Expander
            2x Cable 26-pin Micro-coax for Image Sensor Modules

            TIA

            Alex KushleyevA 1 Reply Last reply Reply Quote 0
            • Alex KushleyevA
              Alex Kushleyev ModalAI Team @QSL
              last edited by Alex Kushleyev

              @QSL

              For connecting the second TOF to VOXL2, you would need to use VOXL2's J8 port because J6 and J7 will be taken up by the M0173 with the three front cameras.

              So you need M0172 plugged into J8 and then plug in M0177 + M0171/M0178 interposer + (actual TOF sensor) assembly into M0172. You can also use an extension M0170 instead of M0177 (https://www.modalai.com/products/msu-m0170).

              using M0177:

              (voxl2 J8) <-> (M0172 J1L) <-> (M0177) <-> (M0171 / M0178) <-> (TOF Module)


              using M0170

              (voxl2 J8) <-> (M0172 J1L) <-> (M0170) <-> (M0171 / M0178) <-> (TOF Module)


              Please keep in mind that M0177 and M0171 / M0178 and TOF module are usually sold as one unit. Also, M0171 and M0178 are identical except for mounting tabs which can be removed from one to make the other.

              I hope that helps!

              Alex

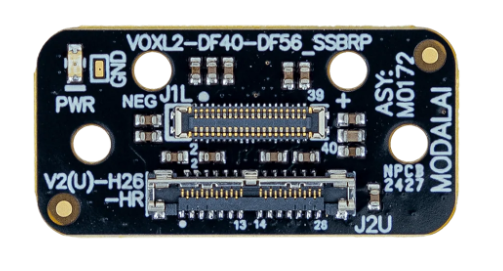

              M0172

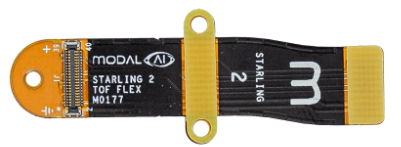

              M0177

              M0171 / M0178

              Actual TOF Sensor Module

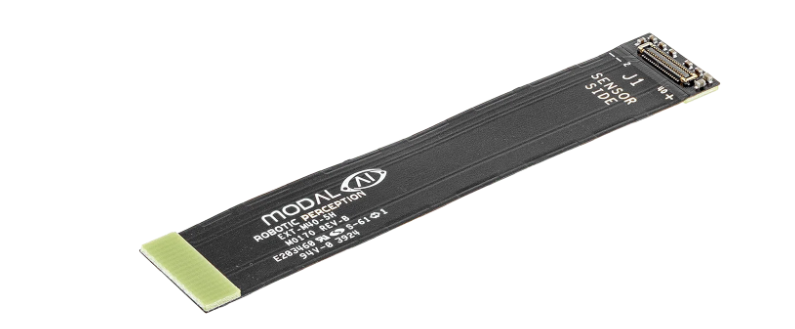

              M0170

              1 Reply Last reply Reply Quote 0
              • Q
                QSL
                last edited by

                @Idan-Fiksel let me know what we need I can get it.
