    VOXL Starling 2 Max hires_front camera unresponsive

    Support Request Format for Best Results
    3
    16
    215
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • B
      brandon
      last edited by

      Hello,

      I just started developing with the Starling 2 Max (sku:MRB-D0012-4-V2-C29-T9-M24-X0) and am unable to see video from the hires_front camera. I saw a post here: https://forum.modalai.com/topic/4139/voxl-portal-wont-display-live-camera-feeds-after-sdk-1-4-0-upgrade that might have a similar issue, but my model has the latest software. Does anyone have ideas on what steps I can take to debug this?

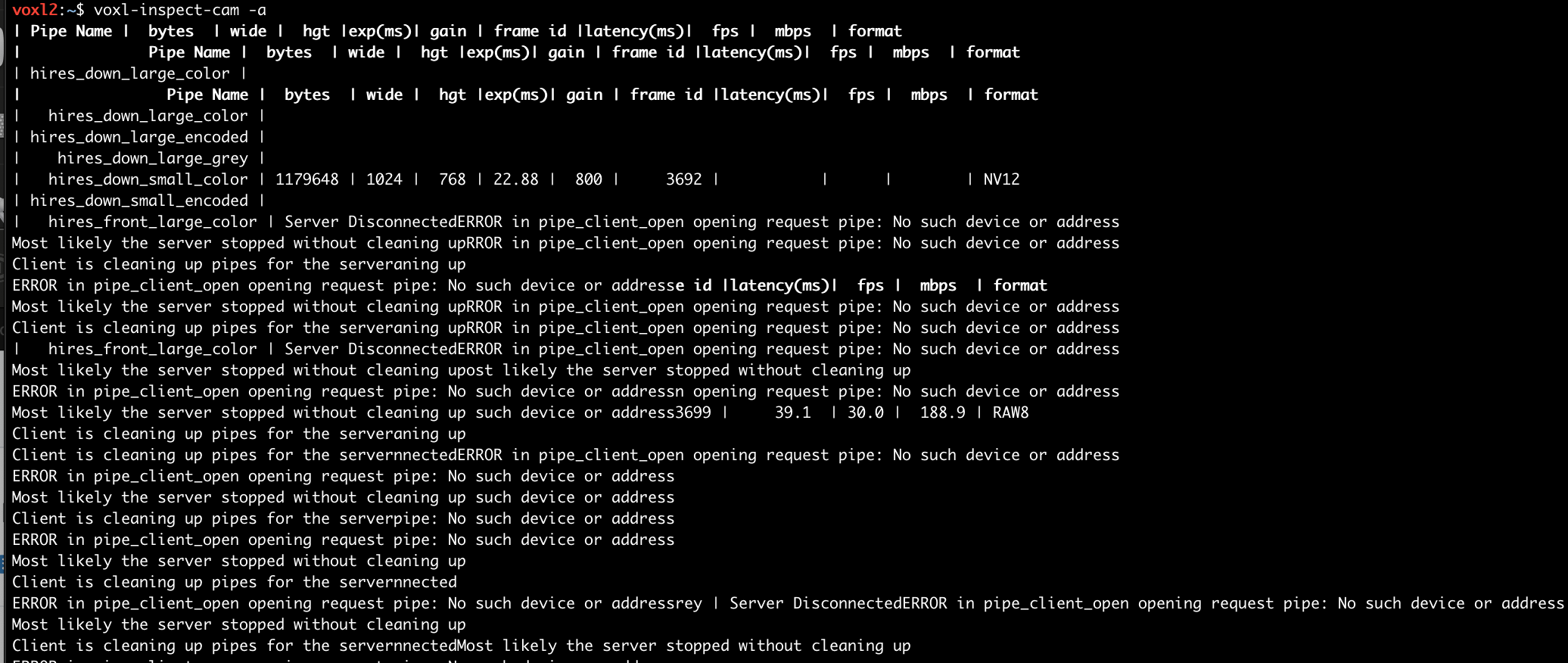

      The voxl-inspect-cam -a output is garbled with messages like "ERROR in pipe_client_open opening request pipe: No such device or address".





      B 1 Reply Last reply Reply Quote 0
      • B
        brandon @brandon
        last edited by

        @brandon Just posting some more context. When looking around the forum I found that I should provide a dmesg log because it looked like voxl-camera-server was aborting.




        Alex KushleyevA 1 Reply Last reply Reply Quote 0
        • Alex KushleyevA
          Alex Kushleyev ModalAI Team @brandon
          last edited by

          Hi @brandon ,

          it looks like there are some CRC errors during image transmission from one of the high-res cameras.

          Can you please try to narrow down which camera it is by disabling one of the IMX412 cameras at a time in /etc/modalai/voxl-camera-server.conf. You can simply set the enabled parameter to false for a corresponding camera and restart the camera server. Then you check to make sure that other cameras are still working.

          Your issue does not seem to be related to the link you posted above regarding a bug in voxl-portal in SDK 1.4.0.

          Thank you

          Alex

          B 1 Reply Last reply Reply Quote 0
          • B
            brandon @Alex Kushleyev
            last edited by

            Hi @Alex-Kushleyev, thanks for the feedback.

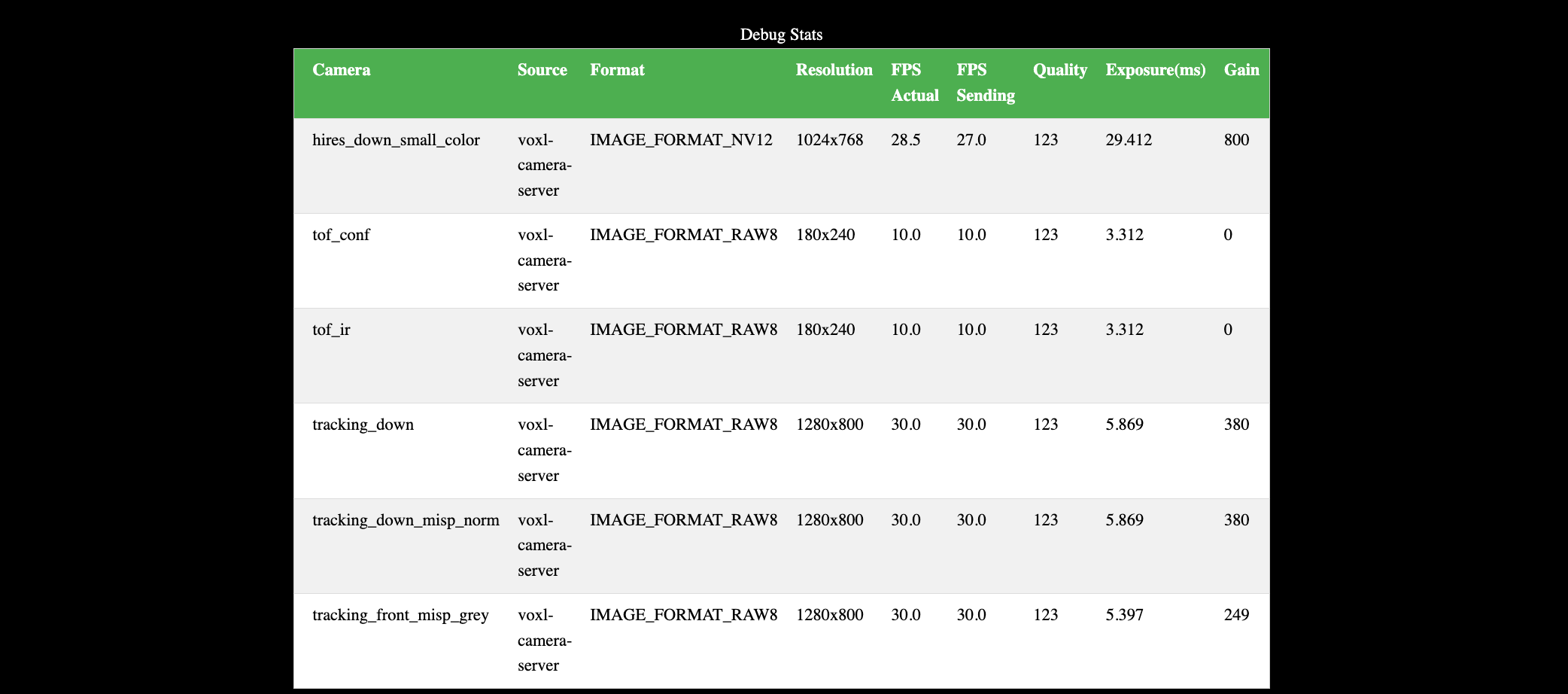

            I disabled the hires_front and things seem a lot more stable. What steps can I take to debug the hires_front crc errors?


            Alex KushleyevA 1 Reply Last reply Reply Quote 0
            • Alex KushleyevA
              Alex Kushleyev ModalAI Team @brandon
              last edited by

              @brandon , usually this is a sign of a hardware issue, most likely the cabling between the camera and VOXL2 (while there is also M0173 in between).

              Has this camera ever worked before?

              Alex

              B 1 Reply Last reply Reply Quote 0
              • B
                brandon @Alex Kushleyev
                last edited by

                @Alex-Kushleyev I have not seen the camera work before. I just started developing with it and thought it might be related to a software bug I was seeing on the forum.

                Alex KushleyevA 1 Reply Last reply Reply Quote 0
                • Alex KushleyevA
                  Alex Kushleyev ModalAI Team @brandon
                  last edited by

                  @brandon , I will double check with the team how to proceed.

                  Can you please do another test, where you re-enable the front hires camera and disable the down-facing one? In this case, the front one still does not work?

                  Alex

                  B 2 Replies Last reply Reply Quote 0
                  • B
                    brandon @Alex Kushleyev
                    last edited by

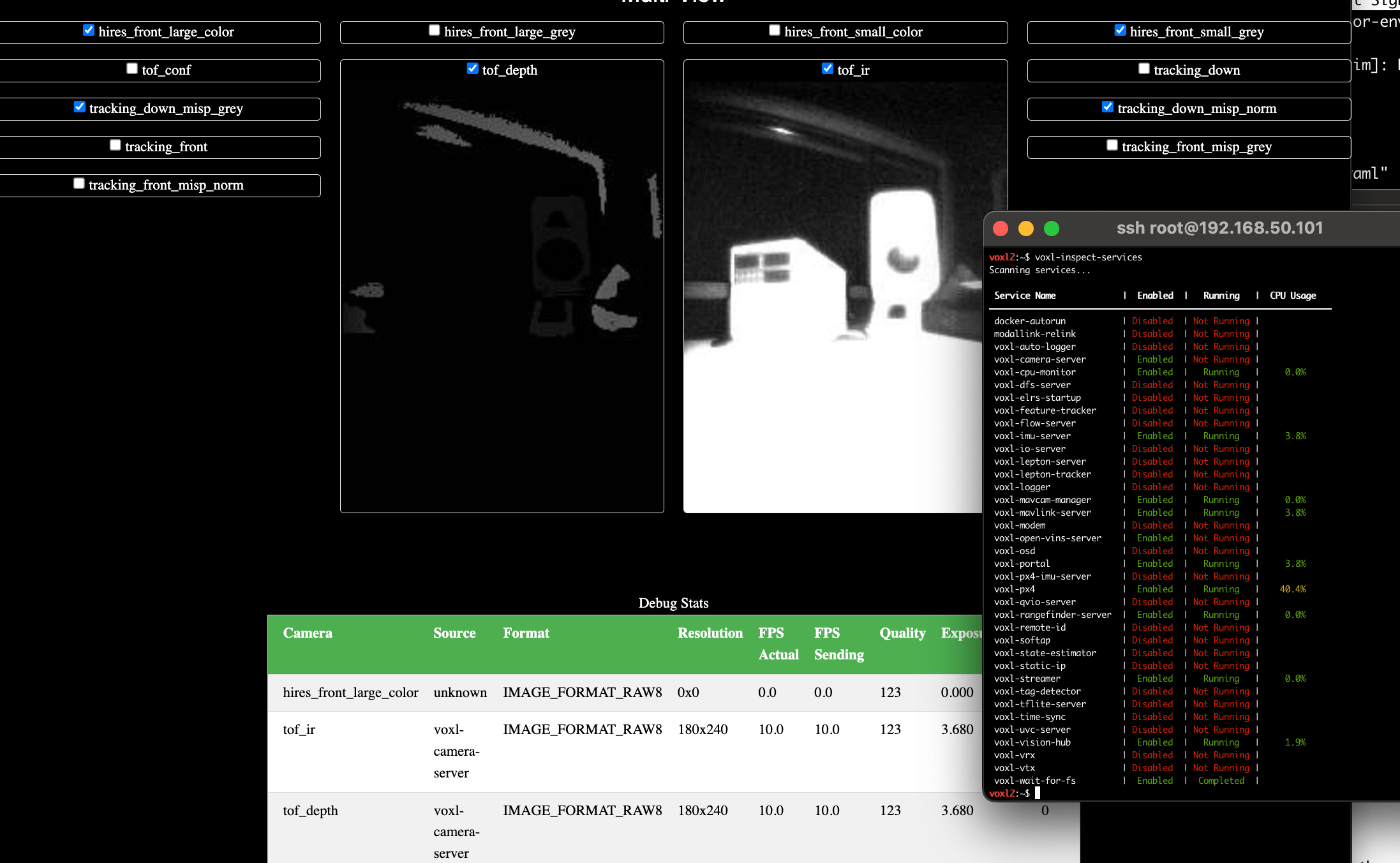

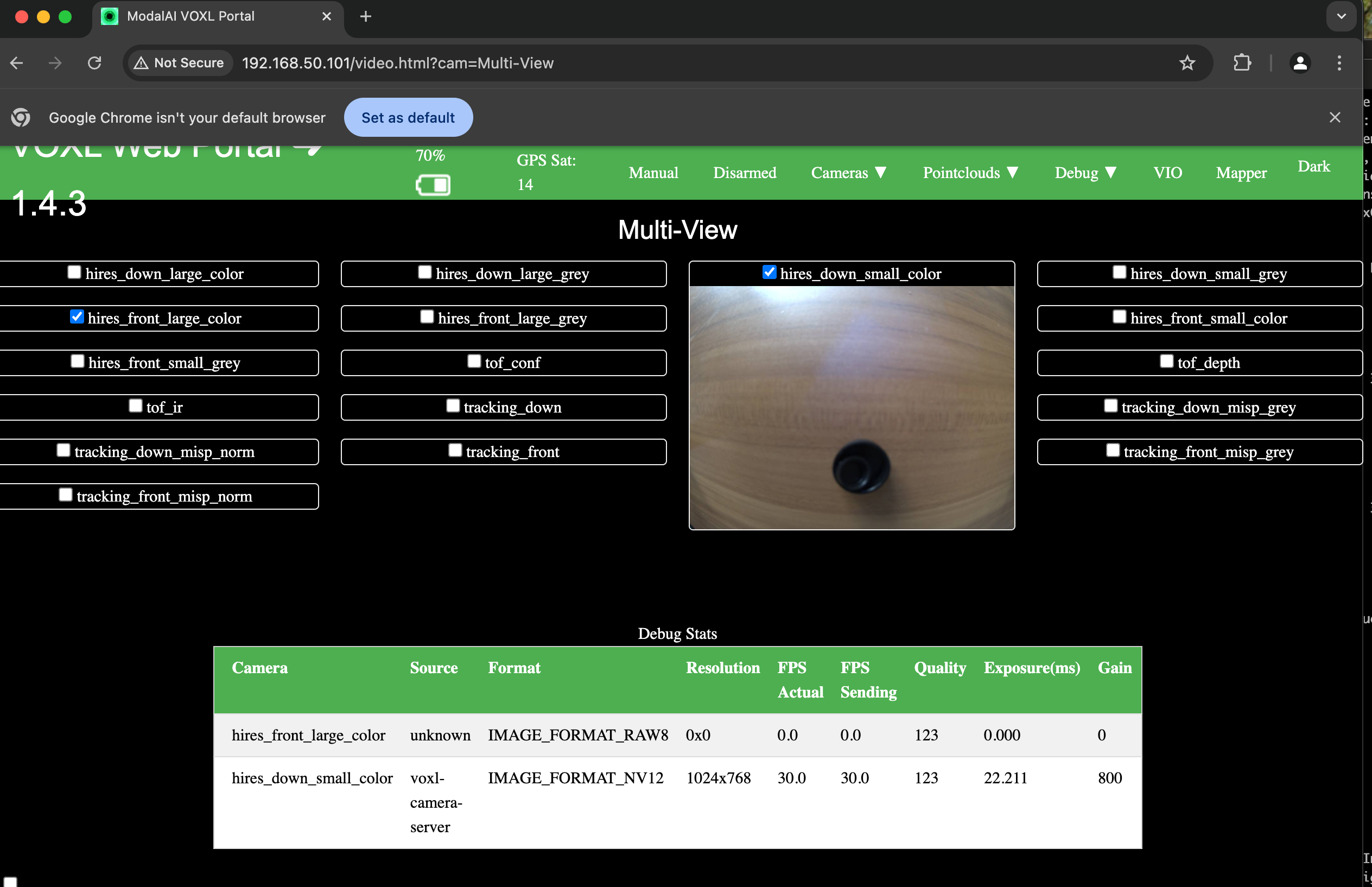

                    @Alex-Kushleyev I performed the next test and the voxl-camera-server crash occurs after a short period of time. I was able to bring up a few camera feeds and then the service died. I was never able to see a frame from the hires_front.


                    1 Reply Last reply Reply Quote 0
                    • B
                      brandon @Alex Kushleyev
                      last edited by

                      @Alex-Kushleyev What did your team recommend? Should I reach out to ModalAI directly?

                      Dobry KolaczD 1 Reply Last reply Reply Quote 0
                      • Dobry KolaczD
                        Dobry Kolacz ModalAI Team @brandon
                        last edited by

                        @brandon Could you please send some photos of what your front camera assembly looks like. I'd like too see all the connections, some views of the camera itself, and what the plastic housing around the cams look like. We verify all cameras are working and get them focused during assembly so I'm trying to track down what could have caused the failure.

                        B 2 Replies Last reply Reply Quote 0
                        • B
                          brandon @Dobry Kolacz
                          last edited by

                          @Dobry-Kolacz





                          IMG_8068 2.JPG

                          IMG_8072 2.JPG

                          1 Reply Last reply Reply Quote 0
                          • B
                            brandon @Dobry Kolacz
                            last edited by

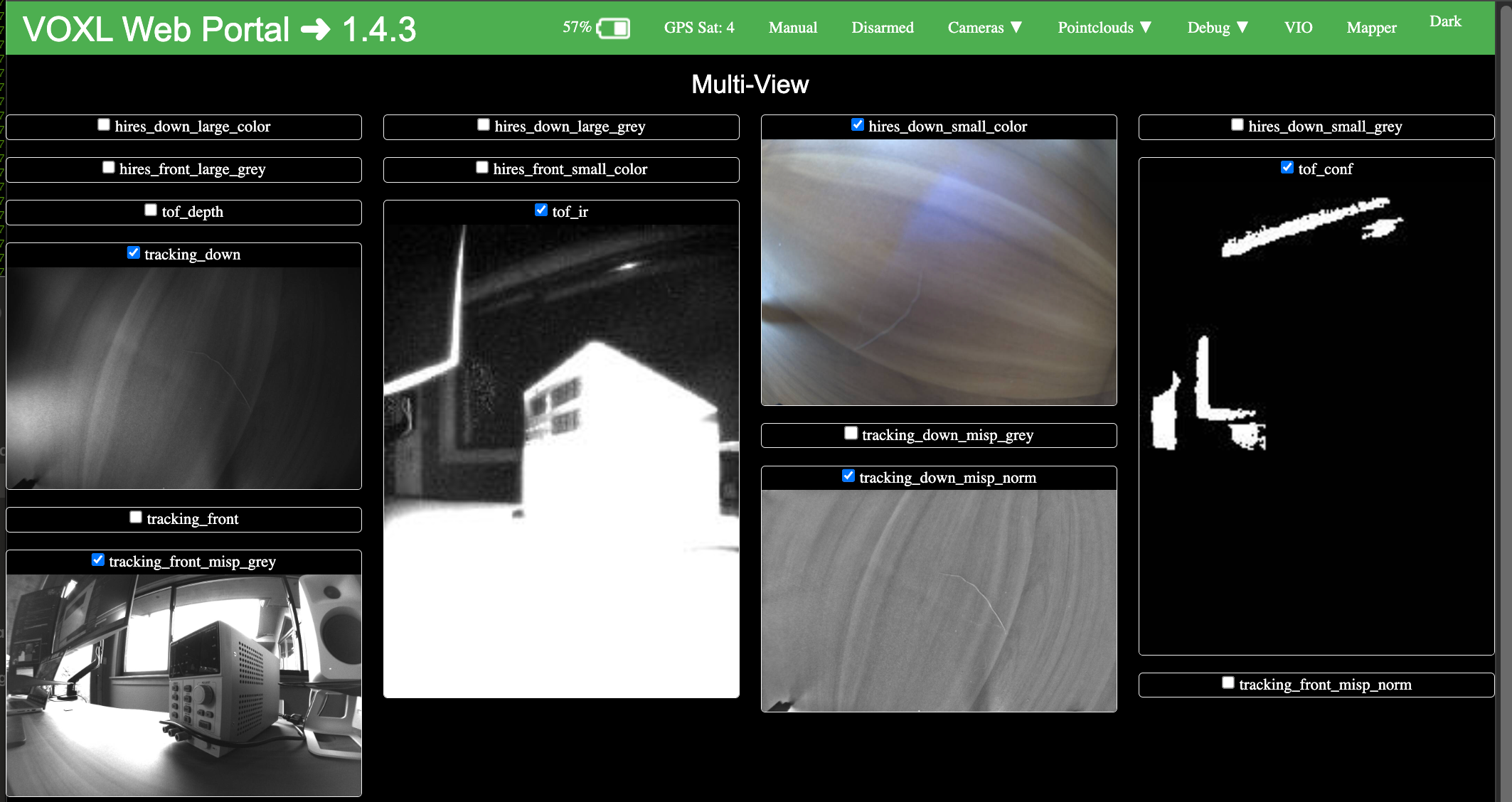

                            @Dobry-Kolacz I’ve seen a few frames come through before, and one time I’ve seen half a valid frame and static noise on the other half of the frame. I didn’t take a picture at the time because I didn’t know it was a problem yet. I was just learning how to ssh in and connect the drone to my WiFi network.

                            Dobry KolaczD 2 Replies Last reply Reply Quote 0
                            • Dobry KolaczD
                              Dobry Kolacz ModalAI Team @brandon
                              last edited by Dobry Kolacz

                              This post is deleted!
                              1 Reply Last reply Reply Quote 0
                              • Dobry KolaczD
                                Dobry Kolacz ModalAI Team @brandon
                                last edited by

                                @brandon Hmm, they look fairly well plugged in as far as I can tell. I'd say look at it from a side profile and if you see anything sticking out or bulging, you'll know it was a poorly seated connector.

                                Just for good measure, go ahead and press against the back of those connectors just to be sure they're fully seated in there. From a side profile, everything should look flat/parallel with the board.

                                B 1 Reply Last reply Reply Quote 0
                                • B
                                  brandon @Dobry Kolacz
                                  last edited by brandon

                                  @Dobry-Kolacz Here is another connector that I think is relevant that I didn't include in the last post. I'm not sure how I should apply force but I tried to push them in a little bit as instructed. Nothing seemed to move and there is no change on the Voxl Portal.




                                  Dobry KolaczD 1 Reply Last reply Reply Quote 0
                                  • Dobry KolaczD
                                    Dobry Kolacz ModalAI Team @brandon
                                    last edited by Dobry Kolacz

                                    @brandon Do you have a plastic spudger tool? Something like this. A plastic tool will significantly reduce the possibility of damaging any components (compared to using anything hard like metal). Press only on the metal part of the connector to prevent warping that plastic nub end.
                                    Typically we use a fingernail to press those connectors in place but for that connector in particular it would be hard to reach with a fingernail. 6d21bb38-e0a6-4d12-b21a-d201dd4fc446-image.png

                                    1 Reply Last reply Reply Quote 0
