    Posts made by will.huang.oksi

    • RE: Malfunction the J connector on VOXL 2 investigation

      @tom
      Thank you for the quick response.
      However,
      it doesn't explain why the same board with the same doodle lab nano radio works with the VOXL 2 previously ( just suddenly doesn't work anymore ) and work with other VOXL 2.

      And
      we are using
      https://techlibrary.doodlelabs.com/doodle-labs-nano-oem-mesh-rider-radio-24002482-mhz

      It doesn't require that much power

      please let me know if any misunderstanding, any suggestion, or any command/method we can use to verify the J port
      Thank you.

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • RE: Malfunction the J connector on VOXL 2 investigation

      @tom

      we use this board
      https://www.modalai.com/products/m0151?variant=47083939791152
      with the Doodle lab nano radio
      https://doodlelabs.com/product/nano-mesh-rider-radio/

      Thank you for the quick response and please let me know if any further quesitons.

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • Malfunction the J connector on VOXL 2 investigation

      To whom it may concern,

      Is there a command or diagnostic procedure to verify the operational status of the J port on a VOXL2?

      Details:
      We have integrated a board that includes a radio device with the VOXL2 via the J port. Initially, the VOXL2 detected the connection and the interface appeared as eth0. However, this VOXL2 has since stopped recognizing the connection. When the same board and radio device are tested with a different VOXL2, the connection is detected normally, which suggests the problem is isolated to this particular unit.

      Could you advise on tools, commands, or logs that can be used to determine whether the J port hardware or the associated network interface on this VOXL2 is functioning correctly?

      Please let me know if you need more details or questions
      Thank you.

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • RE: ESC Mini 4-in-1 M0129 is not controllable through QGC

      @Alex-Kushleyev
      Thank you so much for the detailed explanation!
      I will keep you posted with the update shortly.

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • RE: ESC Mini 4-in-1 M0129 is not controllable through QGC

      Hello @Alex-Kushleyev and @Moderator ,
      Thank you for the response!!!

      As Alex pointed out, the baud rate seems to be the issue preventing the motors from spinning through the Actuator Testing feature in QGC. I have another ESC configured with a 2M baud rate, and it works as expected with Actuator Testing.

      My question now is: how can I update the baud rate on the ESC?

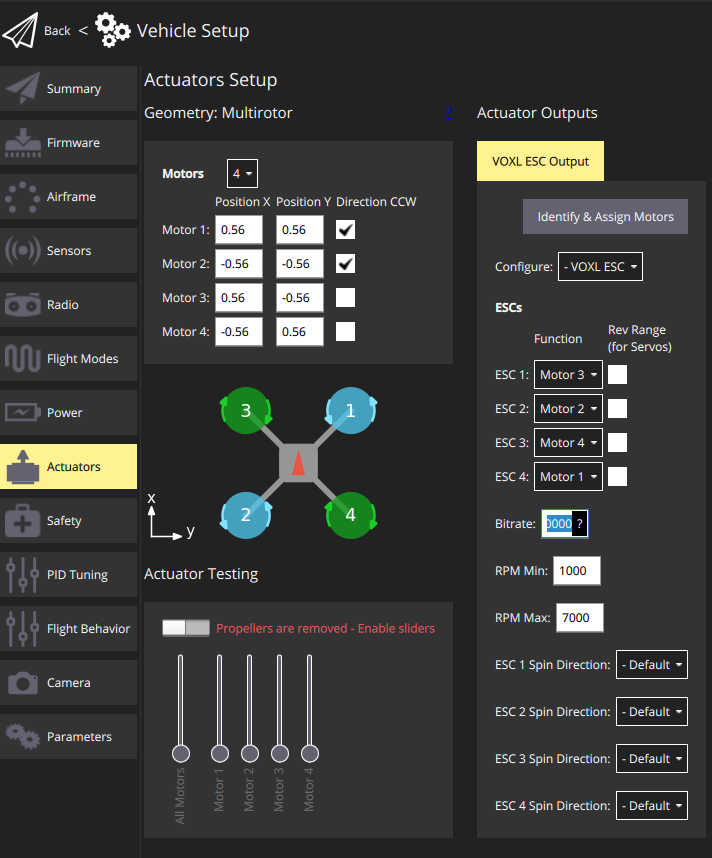

      In QGC, the baud rate is already set to 2M.


      In https://gitlab.com/voxl-public/voxl-sdk/utilities/voxl-esc/-/tree/master/voxl-esc-tools,
      I came across the command:

      ./voxl-esc-upload-params.py --params-file ../params/esc_params_modalai_4_in_1.xml


      However, I wasn’t able to locate this XML file on the VOXL.

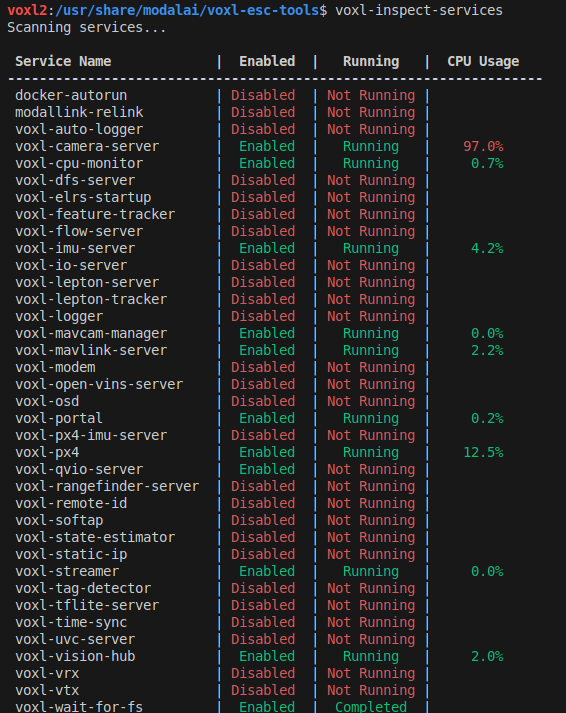

      Here's what I found in the VOXL:


      In the repo I found is esc_params_modalai_4_in_1_revb_mn1804_2400kv_gemfan5040.xml
      Should I upload this xml to /usr/share/modalai/voxl-esc-params/boards/, rename it to esc_params_modalai_4_in_1.xml, and use the python command above?

      I also tried to manually change the baud rate to 2M in those XML files but it gets overwritten after a reboot.

      Could you please provide more detailed instructions on how to properly update the ESC baud rate?

      Thank you.

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • ESC Mini 4-in-1 M0129 is not controllable through QGC

      To whom it may concern,

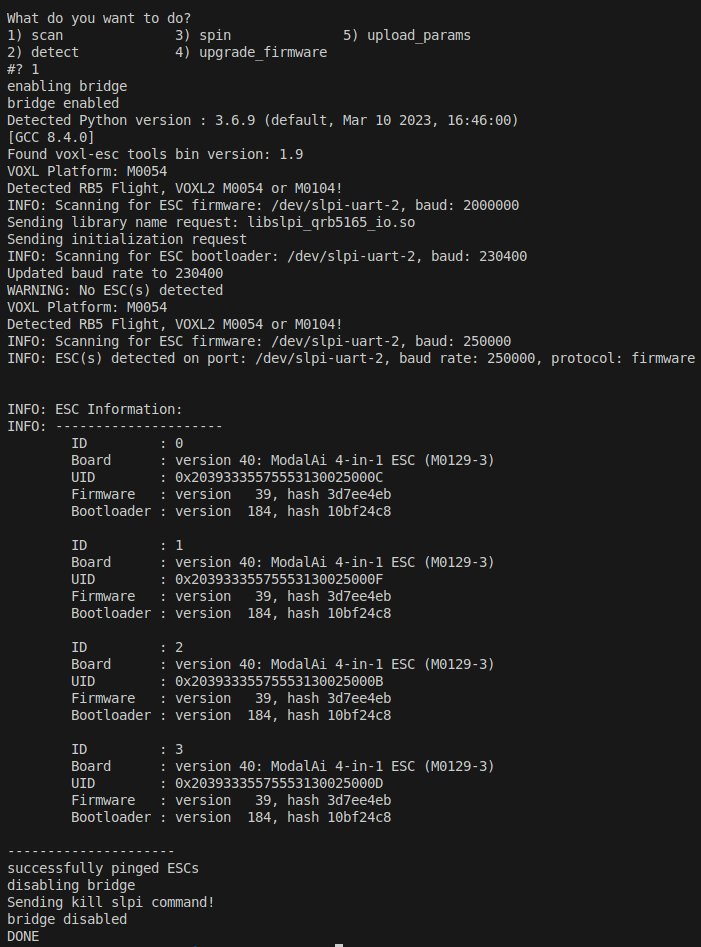

      My VOXL2 Flight Deck is currently running the following SDK version:

      The ESC Mini 4-in-1 is using the following firmware version:

      I am able to successfully spin the motors using the command:

      voxl-esc 3) spin

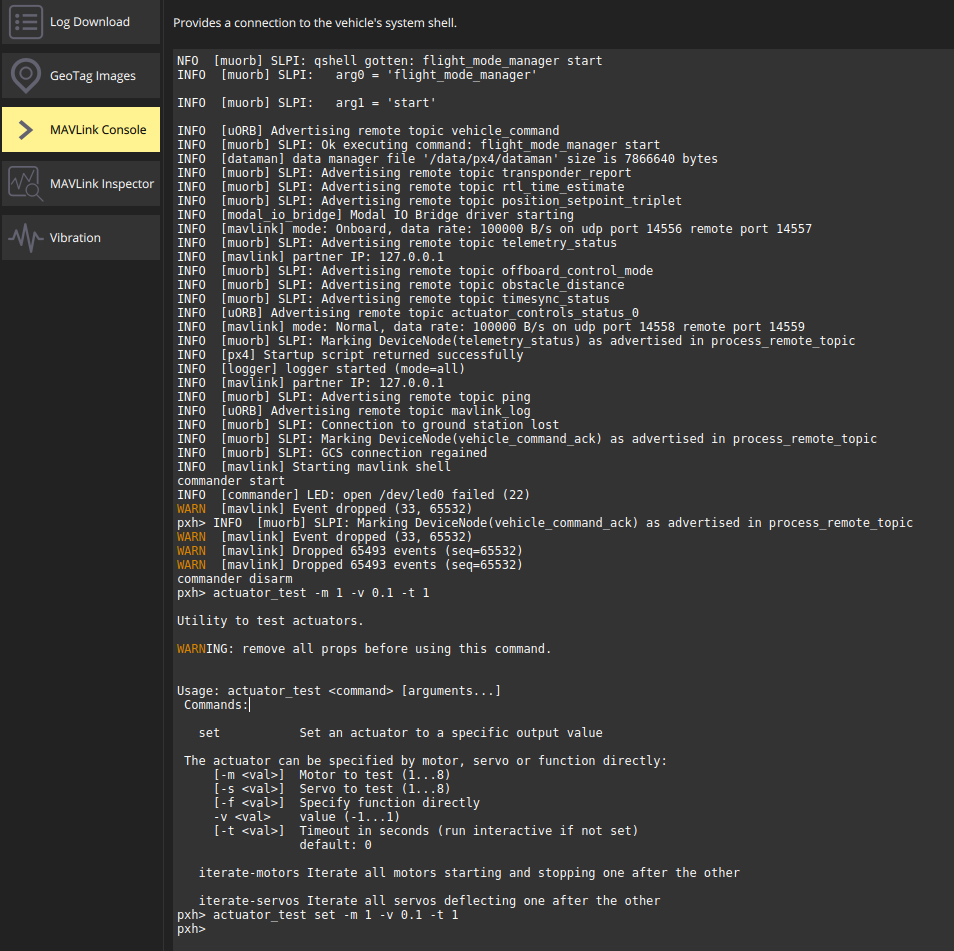

      However, I am unable to spin the motors in QGroundControl using the Actuator Testing feature.
      Could you advise if there are any steps I might have missed?

      ====

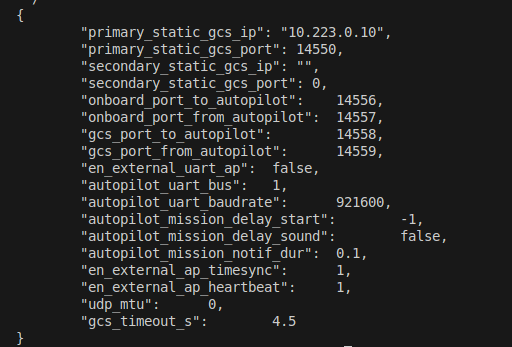

      Additionally, I have connected the VOXL2 to a QGC instance running on an Ubuntu machine within the same network.
      I noticed that the ESC PWM Minimum and Maximum Calibration in QGC requires a USB connection.

      I attempted to connect the VOXL2 to the Ubuntu machine via the USB-C port labeled "U" in the VOXL2 datasheet, but it did not establish a connection.

      Could you clarify which port should be used for this USB connection to ensure proper calibration support in QGC?

      Thank you for your assistance and please let me know if you need more details.

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • RE: Follow up the MAVLink custom port to GCS

      @Eric-Katzfey
      Very sorry for the late response and thank you for pointing out the mavlink-router approach, https://github.com/mavlink-router/mavlink-router.
      I will try it and keep you posted here.
      Thank you for answering my quesiton.

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • RE: QDL device not connected

      Hello @Nathan-Raras and @Nathan-Raras ,

      I don't see any Qualcomm device with running "lsusb".
      I also have confirmed that the USB-C cable is able to access another VOXL device.
      So I have submitted the RMA

      Please let me know if any questions or suggestions.
      Thank you very much for supporting.

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • RE: QDL device not connected

      Hello ModalAI Team,

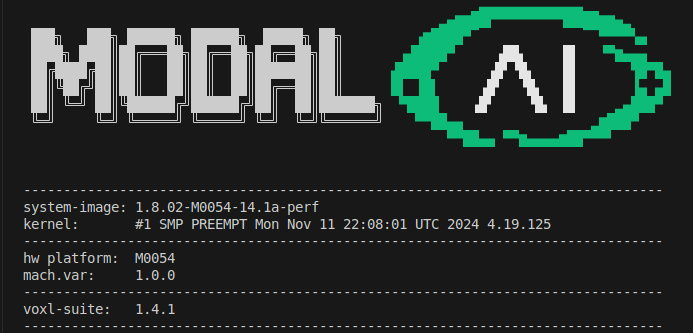

      Here is the HW and SDK info

      • ModalAI Flight Deck M0054
      • VOXL system image 1.8.02-M0054-14.1a-perf
      • VOXL suite 1.4.1

      Thank you.

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • RE: QDL device not connected

      Hello ModalAI Team,
      If you need any additional information regarding the issue I’m currently experiencing, please don’t hesitate to let me know.
      I appreciate your time and support on this matter.

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • RE: QDL device not connected

      Hello,
      if you need any other information for this question,
      please don't hesitate to let me know.
      Thank you for helping!

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • QDL device not connected

      To whom it may concern,

      following this instruction to https://docs.modalai.com/voxl2-unbricking/

      slide the SW2 switch into the ON position,


      but in QDL Tool, it shows QDL device not connected.


      I have confirmed that the USB-C cable works with other VOXL devices.

      Any suggestions or anything I missed?

      Thank you for your precious time on this.

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • Follow up the MAVLink custom port to GCS

      Re: MAVLink custom port to GCS

      Hello @Eric-Katzfey ,
      is there any plan for ModalAI to support this request?
      I am also interested in having this feature.
      Thank you for your precious time on this matter.
      Best,

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • RE: SYS_AUTOSTART param missing, shown in QGC, after flashing the flight deck with voxl2_SDK_1.4.1

      @Eric-Katzfey

      From other discussion,
      I add

      qshell gps start -d 7 -b 115200


      and get the GPS now.

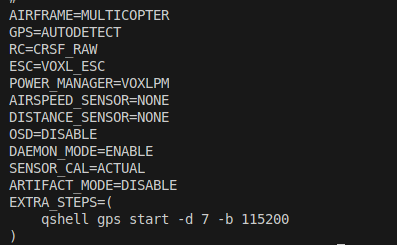

      Here is my setting and please let me know if any questions.
      Thank you for your precious time on this matter.

      AIRFRAME=MULTICOPTER
      GPS=AUTODETECT
      RC=CRSF_RAW
      ESC=VOXL_ESC
      POWER_MANAGER=VOXLPM
      AIRSPEED_SENSOR=NONE
      DISTANCE_SENSOR=NONE
      OSD=DISABLE
      DAEMON_MODE=ENABLE
      SENSOR_CAL=ACTUAL
      ARTIFACT_MODE=DISABLE
      EXTRA_STEPS=(
      qshell gps start -d 7 -b 115200
      )

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • RE: SYS_AUTOSTART param missing, shown in QGC, after flashing the flight deck with voxl2_SDK_1.4.1

      @will-huang-oksi said in SYS_AUTOSTART param missing, shown in QGC, after flashing the flight deck with voxl2_SDK_1.4.1:

      @Eric-Katzfey

      Thank you for the feedback.

      Before your response, I added "-w" to re-flash the VOXL and resolved the SYS_AUTOSTART issue

      ./install.sh -w

      Now I can calibrate the VOXL 2 flight deck.

      If you need the flashing process log, let me know since I don't have privilege to upload any file yet.

      NOW the remaining issue I have is no GPS fix.
      The output from voxl-inspect-gps is

      dt(ms) |fix type|Sats|Latitude(deg)|Longitude(deg)| Alt(m) |Vel(m/s)|HorErr(m)|AltErr(m)|
      124.9 | NO GPS | 0 | 0.0000000 | 0.0000000 | -17.0 | 0.00 | 4294967.295 | 3794659.840 |^C

      In voxl-px4.conf
      I tried GPS=AUTODETECT and GPS=MRO, but none of them works.
      I connect Taoglas GPS "Classic" M9N w/IST8308 - M10034 to the J19 port.

      Here is the full configuration in the voxl-px4.conf

      AIRFRAME=MULTICOPTER
      GPS=AUTODETECT
      RC=CRSF_RAW
      ESC=VOXL_ESC
      POWER_MANAGER=VOXLPM
      AIRSPEED_SENSOR=NONE
      DISTANCE_SENSOR=NONE
      OSD=DISABLE
      DAEMON_MODE=ENABLE
      SENSOR_CAL=ACTUAL
      ARTIFACT_MODE=DISABLE
      EXTRA_STEPS=()

      Also there is no output from
      cat /dev/ttyHS0
      cat /dev/ttyHS1
      cat /dev/ttyHS2
      cat /dev/ttyHS3

      And this is what I have from journalctl -u voxl-px4 -n 100

      -- Logs begin at Thu 2023-03-02 12:58:02 UTC, end at Thu 2023-03-02 13:35:18 UTC. --
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [uORB] Advertising remote topic takeoff_status
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: Ok executing command: mc_pos_control start
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: Marking DeviceNode(qshell_req) as advertised in process_remote_topic
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: qshell gotten: mc_att_control start
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: arg0 = 'mc_att_control'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: arg1 = 'start'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: Ok executing command: mc_att_control start
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: Marking DeviceNode(qshell_req) as advertised in process_remote_topic
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: qshell gotten: mc_rate_control start
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: arg0 = 'mc_rate_controINFO [qshell] Send cmd: 'mc_rate_control start'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] qshell return value timestamp: 2036903088, local time: 2036905841
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] Send cmd: 'mc_hover_thrust_estimator start'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] qshell return value timestamp: 2036964219, local time: 2036966402
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] Send cmd: 'mc_autotune_attitude_control start'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] qshell return value timestamp: 2037021853, local time: 2037025239
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] Send cmd: 'land_detector start multicopter'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] qshell return value timestamp: 2037083571, local time: 2037085728
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] Send cmd: 'manual_control start'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] qshell return value timestamp: 2037144972, local time: 2037146917

      Any suggestions or any information you need?

      Thank you for helping.

      I found a mistake
      Previously I select flight-deck when re-flash.
      This time with -w I select voxl2 flight-deck
      Sorry for confusion.

      So the only issue I have now is the GPS issue.
      Please let me know if any questions or suggestions.

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • RE: SYS_AUTOSTART param missing, shown in QGC, after flashing the flight deck with voxl2_SDK_1.4.1

      @Eric-Katzfey

      Thank you for the feedback.

      Before your response, I added "-w" to re-flash the VOXL and resolved the SYS_AUTOSTART issue

      ./install.sh -w

      Now I can calibrate the VOXL 2 flight deck.

      If you need the flashing process log, let me know since I don't have privilege to upload any file yet.

      NOW the remaining issue I have is no GPS fix.
      The output from voxl-inspect-gps is

      dt(ms) |fix type|Sats|Latitude(deg)|Longitude(deg)| Alt(m) |Vel(m/s)|HorErr(m)|AltErr(m)|
      124.9 | NO GPS | 0 | 0.0000000 | 0.0000000 | -17.0 | 0.00 | 4294967.295 | 3794659.840 |^C

      In voxl-px4.conf
      I tried GPS=AUTODETECT and GPS=MRO, but none of them works.
      I connect Taoglas GPS "Classic" M9N w/IST8308 - M10034 to the J19 port.

      Here is the full configuration in the voxl-px4.conf

      AIRFRAME=MULTICOPTER
      GPS=AUTODETECT
      RC=CRSF_RAW
      ESC=VOXL_ESC
      POWER_MANAGER=VOXLPM
      AIRSPEED_SENSOR=NONE
      DISTANCE_SENSOR=NONE
      OSD=DISABLE
      DAEMON_MODE=ENABLE
      SENSOR_CAL=ACTUAL
      ARTIFACT_MODE=DISABLE
      EXTRA_STEPS=()

      Also there is no output from
      cat /dev/ttyHS0
      cat /dev/ttyHS1
      cat /dev/ttyHS2
      cat /dev/ttyHS3

      And this is what I have from journalctl -u voxl-px4 -n 100

      -- Logs begin at Thu 2023-03-02 12:58:02 UTC, end at Thu 2023-03-02 13:35:18 UTC. --
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [uORB] Advertising remote topic takeoff_status
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: Ok executing command: mc_pos_control start
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: Marking DeviceNode(qshell_req) as advertised in process_remote_topic
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: qshell gotten: mc_att_control start
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: arg0 = 'mc_att_control'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: arg1 = 'start'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: Ok executing command: mc_att_control start
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: Marking DeviceNode(qshell_req) as advertised in process_remote_topic
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: qshell gotten: mc_rate_control start
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [muorb] SLPI: arg0 = 'mc_rate_controINFO [qshell] Send cmd: 'mc_rate_control start'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] qshell return value timestamp: 2036903088, local time: 2036905841
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] Send cmd: 'mc_hover_thrust_estimator start'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] qshell return value timestamp: 2036964219, local time: 2036966402
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] Send cmd: 'mc_autotune_attitude_control start'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] qshell return value timestamp: 2037021853, local time: 2037025239
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] Send cmd: 'land_detector start multicopter'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] qshell return value timestamp: 2037083571, local time: 2037085728
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] Send cmd: 'manual_control start'
      Mar 02 13:31:54 m0054 voxl-px4[4783]: INFO [qshell] qshell return value timestamp: 2037144972, local time: 2037146917

      Any suggestions or any information you need?

      Thank you for helping.

      posted in Ask your questions right here!
      W
      will.huang.oksi
    • RE: SYS_AUTOSTART param missing, shown in QGC, after flashing the flight deck with voxl2_SDK_1.4.1

      @Eric-Katzfey

      Because having the missing parameter issue and a lot of sections are in red,
      the VOXL flight deck is never armed and therefore there is no px4 log.

      Thank you for your precious time on this matter, and please let me know any other log/file will be helpful.

      posted in Ask your questions right here!
      W
      will.huang.oksi
