M0172 CAD file not correct
-
Hello,
I need to integrate the M0172 in my CAD design. However, the link to download the model does not correspond to the actual adapter. Can I get the correct one?
Thank you!
Best Regards,
Jacob@jakkkkobo , It looks correct to me: https://storage.googleapis.com/modalai_public/modal_drawings/M0172_REVA_3D_2025-11-03.step
What is the issue that you see?
-
@jakkkkobo , It looks correct to me: https://storage.googleapis.com/modalai_public/modal_drawings/M0172_REVA_3D_2025-11-03.step
What is the issue that you see?

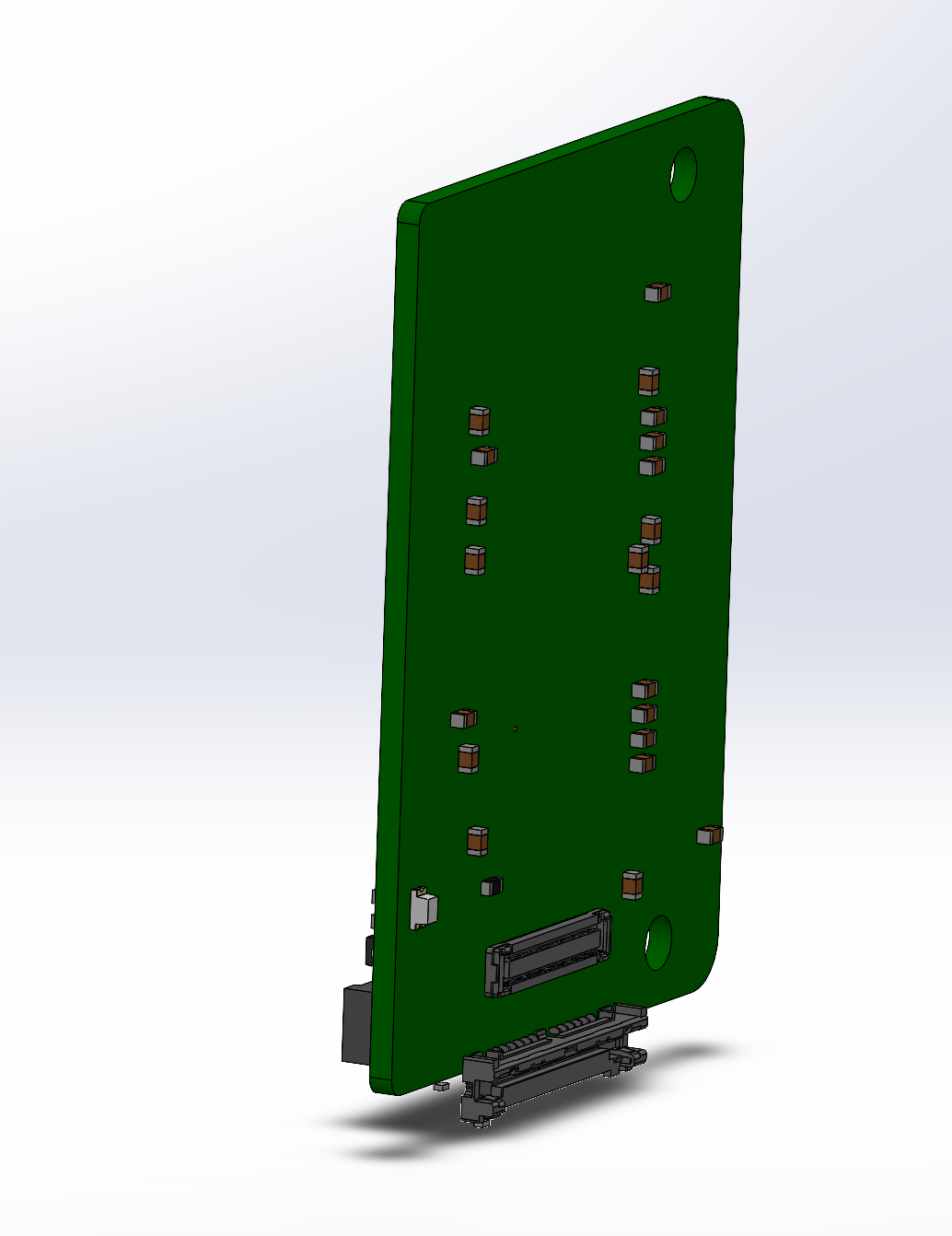

@Alex-Kushleyev This was what I got when opening the file in SolidWorks:
I found a symlink mismatch in the file tree... pushing M073 PCB board with M0172 connector.

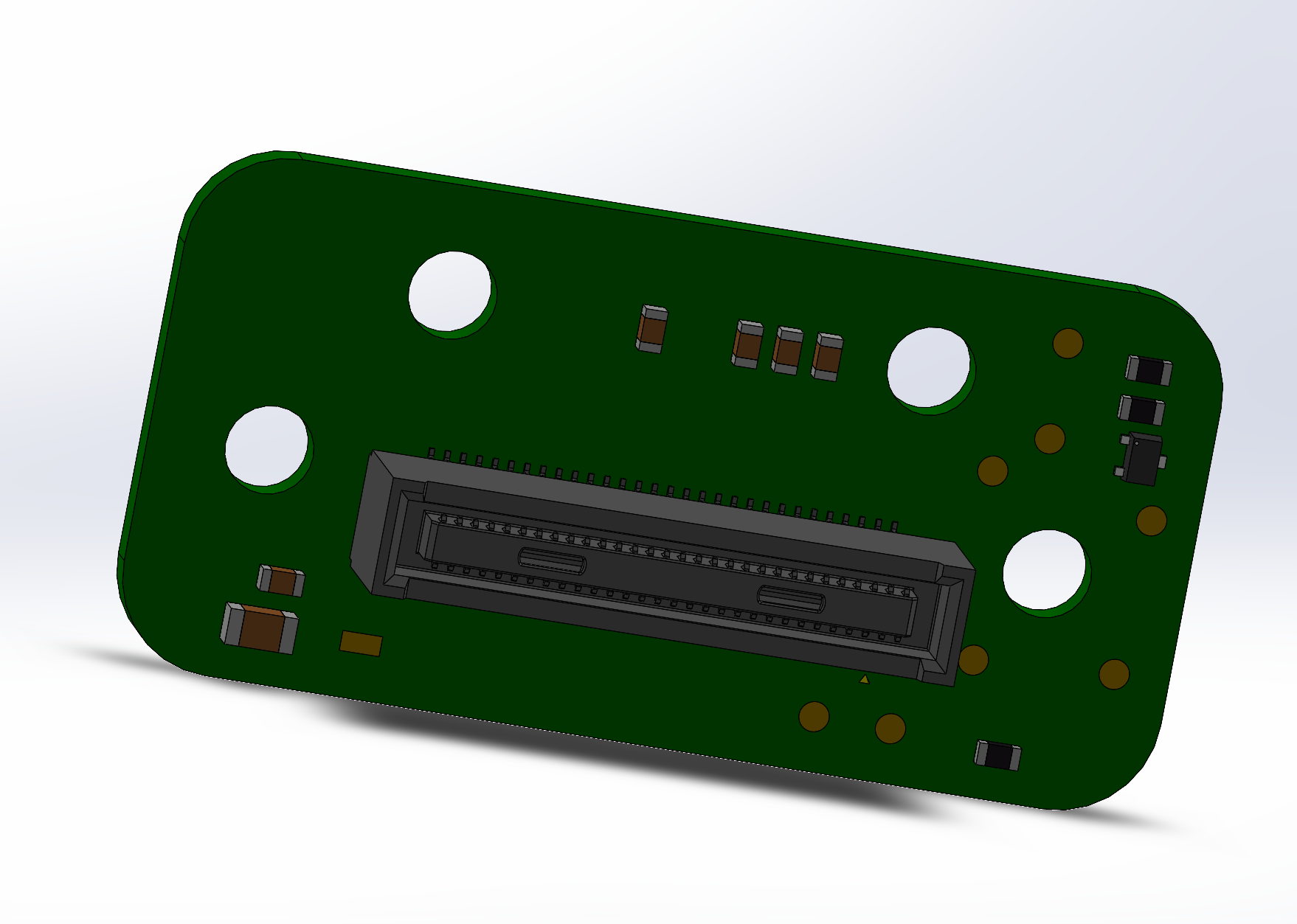

Anyway, it is solved now:
Thank you.
Regards,
Jacob
