Voxl 2 Mini not detected via USB

[Sarika Sharma]

Hi ModalAI Team,

I'm working on a VOXL2 Mini (M0104) and facing persistent USB connection issues.

️ Environment:

Host OS: Ubuntu 22.04 (also tested on Windows 10)

Cable: Known-good USB-C data cable

Power: Board powered via ESC; LED turns on

Issue:

Ubuntu: lsusb shows nothing in any mode (ADB, Fastboot, or EDL)

Windows: Device Manager shows Unknown USB Device (Device Descriptor Request Failed) with a yellow triangle

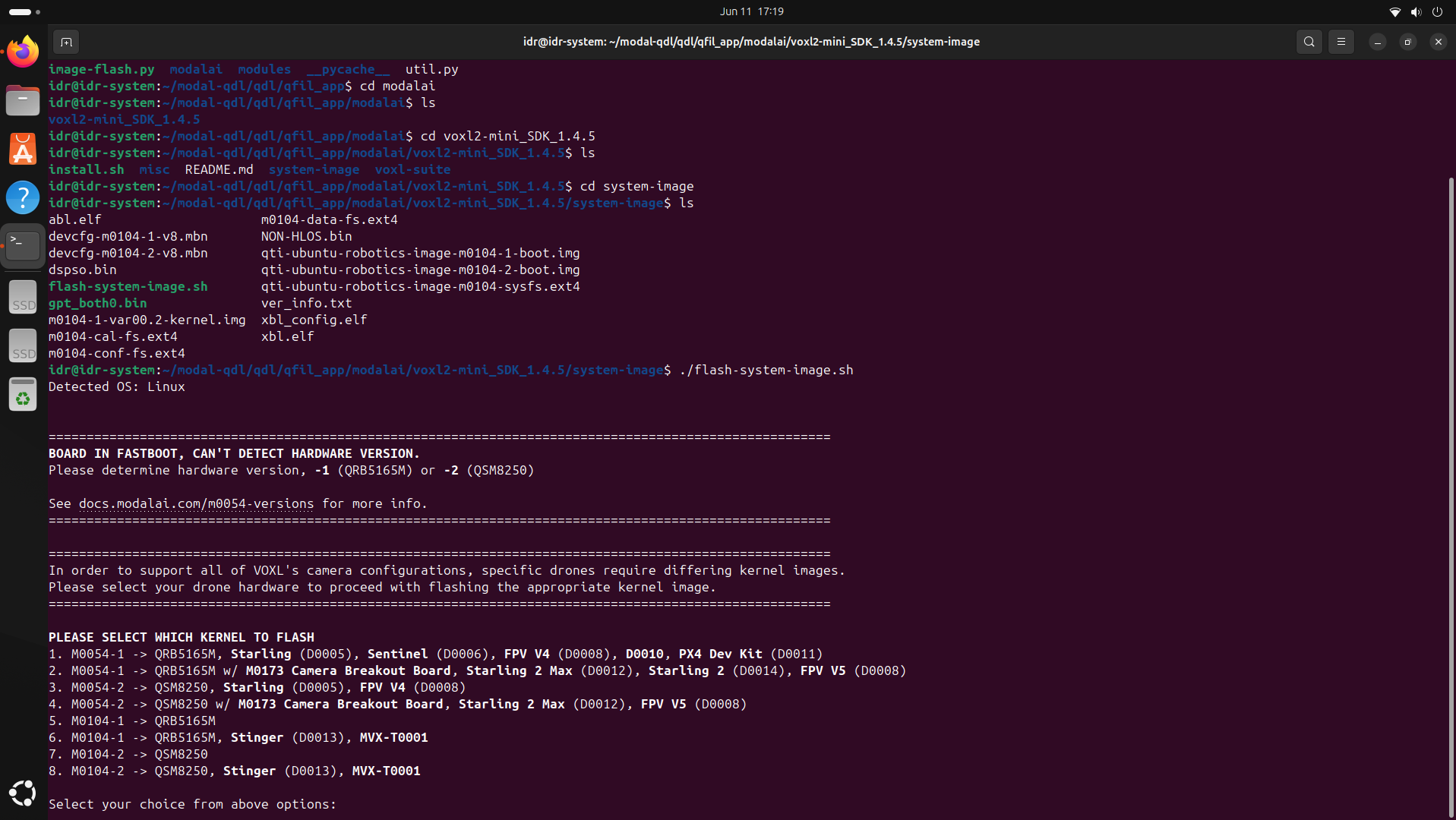

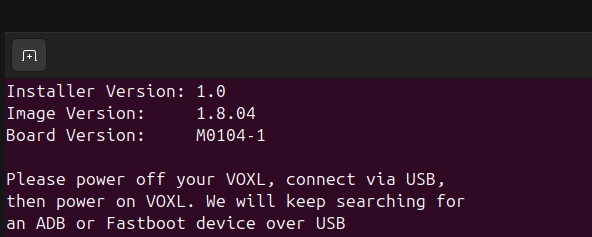

I also tried to run flash-system-image.sh (see the attached screenshots)fails with “device not found” in fastboot mode

Tried:

Different cables and USB ports (USB 2.0 & 3.0)

Different PCs (Windows and Linux)

Turned on EDL switch

Force Fastboot

Request:

Looking for guidance.

[tom]

@Sarika-Sharma If you're using a VM on windows in order to run Ubuntu you'll need to setup USB device pass-through from your host machine.

I would recommend running linux natively if possible

[Sarika Sharma]

@tom I am running Ubuntu natively (not inside a VM). USB passthrough is not applicable in my case.

[tom]

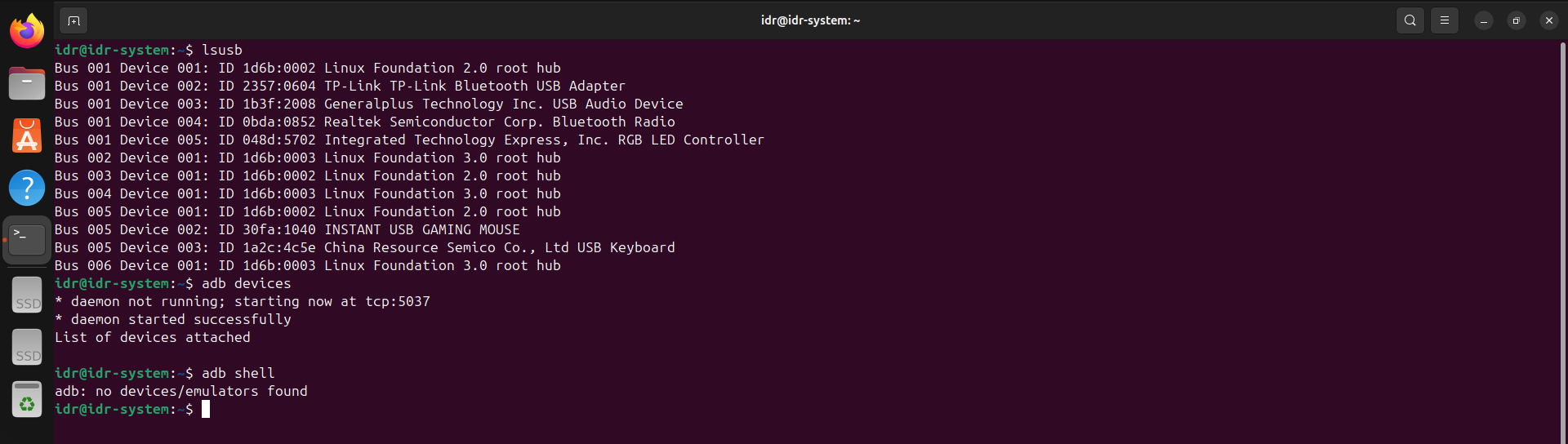

@Sarika-Sharma With the device powered and plugged in via USB, what do you see with lsusb?

[Sarika Sharma]

@tom

[tom]

@Sarika-Sharma Interesting, is there a different USB cable / port combo you can try? It may be worth trying with a USB-A to C cable as some C to C cables don't contain the proper data lines
