CANT ACCESS CAMERA

[taiwohazeez]

HI, I am trying to calibrate my starling 2 drone cameras, but I realized I cant access my cameras from the voxl-portal. On voxl portal, I can see the list of camera pipes, but if I select any one if them, I dont get a footage. I have attached screenshots to make you understand what I mean better. I dont know mcuh about this, could you please point me in the right direction? How can I get it working


[taiwohazeez]

Hello Support,

Can anyone kindly look into this please?

I tried it accessing the cameras today from the voxl portal, it showed live footage at first, then it crashed. Can you kindly assist.

Thanks

[Alex Kushleyev]

@taiwohazeez ,

Please try the following after a fresh reboot:

voxl-inspect-cam tracking_down tracking_front tracking_rear tof_ir hires_small_color

Running voxl-inspect-cam -a can break the camera server because there are too many output streams to process. This used to be a good option in the past for a quick test, but with 5 cameras and ~25 streams this is becoming too heavy. In normal use cases, only one stream is used from each camera.

If you are just getting started, I would suggest updating your drone to at least SDK 1.5 or even 1.6, however you should still be able to get camera streams displayed in voxl-portal or using the limited voxl-inspect-cam command.

If you still cannot get this to work, please do the following to stop the background service for voxl-camera-server and run in in the foreground and past the output:

#stop the background service (it will restart after reboot)
systemctl stop voxl-camera-server

#run camera server in foreground
voxl-camera-server

Alex

[taiwohazeez]

@Alex-Kushleyev Thank you for the response. After fresh reboot the camera pipes functions for a little while and stops immediately (I can see it in voxl-portal, then they keep disappearing until i am left with tag_overlay and multi-view

[Alex Kushleyev]

@taiwohazeez ,

Can you please confirm that you only inspected several pipes using the command:

voxl-inspect-cam tracking_down tracking_front tracking_rear tof_ir hires_small_color

Also please use voxl-inspect-cpu to check if the cpu is overheating during your testing.

Additionally, are you able to provide output of voxl-camera-server (running in the foreground) when the pipes start disappearing?

If you are able to update to the latest SDK (1.6.x) , it may be easier for us to support, as 1.4.5 is 7 months old.

Alex

[taiwohazeez]

@Alex-Kushleyev I updated to SDK 1.62 already, and yes I only inspected using voxl-inspect-cam tracking_down tracking_front tracking_rear tof_ir hires_small_color.

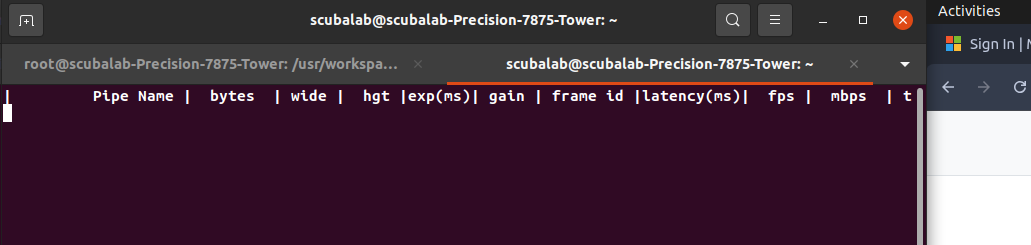

After running that, I got this (empty response), and when you Ctrl C, you get waiting for server

This is the output after I ran voxl-inspect-cpu

After running voxl-camera-server, i got this:

voxl2:/$ voxl-camera-server
Setting MISP AWB to Auto
MISP channels enabled in defaults : 0
MISP channels enabled in config file: 0
detected system image 1.8.6
using new imx412 defaults
Setting MISP AWB to Auto
MISP channels enabled in defaults : 0
MISP channels enabled in config file: 0
Setting MISP AWB to Auto
MISP channels enabled in defaults : 0
MISP channels enabled in config file: 0

configuration for 5 cameras:

cam #0
name: tracking_front
type: ar0144
bayer_type: 0
enabled: 1
camera_id: 0
camera_id_second: -1
fps: 30
en_rotate: 1
en_rotate2: 0

en_preview:          1
en_raw_preview:      1
preview_width:       1280
preview_height:      800

en_misp:             0
misp_width:          1280
misp_height:         800

en_small_video:      0
small_video_width:   -1
small_video_height:  -1

en_large_video:      0
large_video_width:   -1
large_video_height:  -1

en_snapshot:         0
snap_width:          -1
snap_height:         -1
exif_focal_length:   0.000000
exif_focal_len_35mm_format:0
exif_fnumber:        0.000000

ae_mode:             lme_msv
msv_exposure_min_us: 20
msv_exposure_max_us: 12000
gain_min           : 54
gain_max           : 8000
standby_enabled:     0
decimator:           1
independent_exposure:0

cam #1
name: hires
type: imx412
bayer_type: 2
enabled: 1
camera_id: 1
camera_id_second: -1
fps: 30
en_rotate: 0
en_rotate2: 0

en_preview:          0
en_raw_preview:      0
preview_width:       640
preview_height:      480

en_misp:             0
misp_width:          -1
misp_height:         -1

en_small_video:      1
small_video_width:   1024
small_video_height:  768

en_large_video:      1
large_video_width:   4056
large_video_height:  3040

en_snapshot:         1
snap_width:          4056
snap_height:         3040
exif_focal_length:   3.100000
exif_focal_len_35mm_format:17
exif_fnumber:        1.240000

ae_mode:             isp
msv_exposure_min_us: 20
msv_exposure_max_us: 33000
gain_min           : 54
gain_max           : 8000
standby_enabled:     0
decimator:           1
independent_exposure:0

cam #2
name: tracking_rear
type: ar0144
bayer_type: 0
enabled: 1
camera_id: 2
camera_id_second: -1
fps: 30
en_rotate: 1
en_rotate2: 0

en_preview:          1
en_raw_preview:      1
preview_width:       1280
preview_height:      800

en_misp:             1
misp_width:          1280
misp_height:         800

en_small_video:      0
small_video_width:   -1
small_video_height:  -1

en_large_video:      0
large_video_width:   -1
large_video_height:  -1

en_snapshot:         0
snap_width:          -1
snap_height:         -1
exif_focal_length:   0.000000
exif_focal_len_35mm_format:0
exif_fnumber:        0.000000

ae_mode:             lme_msv
msv_exposure_min_us: 20
msv_exposure_max_us: 12000
gain_min           : 54
gain_max           : 8000
standby_enabled:     0
decimator:           1
independent_exposure:0

cam #3
name: tof
type: pmd-tof-liow2
bayer_type: 0
enabled: 1
camera_id: 3
camera_id_second: -1
fps: 10
en_rotate: 1
en_rotate2: 0

en_preview:          1
en_raw_preview:      1
preview_width:       240
preview_height:      1629

en_misp:             0
misp_width:          -1
misp_height:         -1

en_small_video:      0
small_video_width:   -1
small_video_height:  -1

en_large_video:      0
large_video_width:   -1
large_video_height:  -1

en_snapshot:         0
snap_width:          -1
snap_height:         -1
exif_focal_length:   0.000000
exif_focal_len_35mm_format:0
exif_fnumber:        0.000000

ae_mode:             off
msv_exposure_min_us: 0
msv_exposure_max_us: 6000
gain_min           : 0
gain_max           : 0
standby_enabled:     0
decimator:           5
independent_exposure:0

cam #4
name: tracking_down
type: ar0144
bayer_type: 0
enabled: 1
camera_id: 4
camera_id_second: -1
fps: 30
en_rotate: 0
en_rotate2: 0

en_preview:          1
en_raw_preview:      1
preview_width:       1280
preview_height:      800

en_misp:             1
misp_width:          1280
misp_height:         800

en_small_video:      0
small_video_width:   -1
small_video_height:  -1

en_large_video:      0
large_video_width:   -1
large_video_height:  -1

en_snapshot:         0
snap_width:          -1
snap_height:         -1
exif_focal_length:   0.000000
exif_focal_len_35mm_format:0
exif_fnumber:        0.000000

ae_mode:             lme_msv
msv_exposure_min_us: 20
msv_exposure_max_us: 12000
gain_min           : 54
gain_max           : 8000
standby_enabled:     0
decimator:           1
independent_exposure:0

fsync_en: 1
fsync_gpio: 109

thread is locked to cores: 4 5 6 7
connected to mavlink pipe
Connected to cpu-monitor
Starting Camera: tracking_front (id #0)
gbm_create_device(156): Info: backend name is: msm_drm
Starting Camera: hires (id #1)
Estimated imu dt = 0.000977s
Starting Camera: tracking_rear (id #2)
ERROR: Received Fatal error from camera: tracking_front
ERROR: Sending request 10, ErrorCode: -ENODEV
ERROR: Received "Result" error from camera: tracking_front, frame number 4
WARNING: Thread: tracking_front request thread Received ESTOP
WARNING: Thread: tracking_front result thread Received ESTOP
WARNING: Thread: hires result thread Received ESTOP
WARNING: Thread: hires request thread Received ESTOP
MISP Initializing for camera tracking_rear
Detected 1 platform(s)
Detected 1 GPU device(s)
WARNING: OMX SetTargetBitrate: H265 CBR requires bps >= 3.0Mbit (1200000 bps provided). Using FPS hack. scale = 2.500000
Starting Camera: tof (id #3)
Starting Camera: tracking_down (id #4)
MISP Initializing for camera tracking_down
WARNING: OMX SetTargetBitrate: H265 CBR requires bps >= 3.0Mbit (1200000 bps provided). Using FPS hack. scale = 2.500000

------ voxl-camera-server: Started 5 of 5 cameras

------ voxl-camera-server: Camera server is now running

------ voxl-camera-server: Camera server is now stopping

Stats For Camera tracking_front:
Received Frame Count: 10
Request Error Count: 0
Buffer Error Count: 0
Result Error Count: 1
ERROR: Received "Result" error from camera: tracking_down, frame number 0
ERROR: Received "Buffer" error from camera: tracking_down, frame number 0
ERROR: Received Fatal error from camera: tracking_down
ERROR: Sending request 6, ErrorCode: -ENODEV
WARNING: Pushed buffers back to pools for frame: 0
WARNING: Thread: tracking_down request thread Received ESTOP
WARNING: Thread: tof result thread Received ESTOP
WARNING: Thread: tracking_rear result thread Received ESTOP
WARNING: Thread: tracking_down result thread Received ESTOP
WARNING: Thread: tracking_rear request thread Received ESTOP

Stats For Camera hires:
Received Frame Count: 6
Request Error Count: 0
Buffer Error Count: 0
Result Error Count: 0

Stats For Camera tracking_rear:
Received Frame Count: 0
Request Error Count: 0
Buffer Error Count: 0
Result Error Count: 0
WARNING: Thread: tof request thread Received ESTOP

Stats For Camera tof:
Received Frame Count: 0
Request Error Count: 0
Buffer Error Count: 0
Result Error Count: 0

Stats For Camera tracking_down:
Received Frame Count: 6
Request Error Count: 0
Buffer Error Count: 1
Result Error Count: 1

------ voxl-camera-server: Camera server exited gracefully, returning 0

IMU Manager closing and exiting
voxl2:/$

[taiwohazeez]

@Alex-Kushleyev Also, when you run voxl-inspect-services, voxl-camera-server will be enables but not running, Immediately i start it, it runs and stops almost immediately
