Flight Core 2 Firmware update through QGC

VictorG

I am trying to setup my new Flight Core 2, but when I connect it to a USB port on my Windows 11 laptop with QGC 5.0.6 I get a message pop up saying "Power surge on the USB port".

Screenshot 2025-07-25 163305.png

The Flight Core 2 also got pretty hot -- I hope it didn't get fried!

Also, I am not clear from the rather brief documentation what file I need to download and use for the firmware update.

Do I need to use SDK 1.1 specifically or should I use the latest (1.5)? That directory contains

modalai_fc-v2_1.14.0-2.0.105.bin 05-Jun-2025 22:24 1867164
modalai_fc-v2_1.14.0-2.0.105.px4 05-Jun-2025 22:24 1758094
modalai_fc-v2_1.14.0-8.104.3.bin 05-Jun-2025 22:37 1896744
modalai_fc-v2_1.14.0-8.104.3.px4 05-Jun-2025 22:37 1786598

but the doc mentions voxl_SDK_*1.1.0.tar.g.

VictorG

Hi, any word on this? At this point I am not able to use this product and wonder whether it is defective and needs to be replaced. Please advise.

Moderator

@VictorG have you looked at the instructions here? https://docs.modalai.com/flight-core-v2-usb-to-qgc/

VictorG

@Moderator yes, or at least I tried to. In this step:

 confirm the “Serial Port” is correctly listed

QGC listed COM3 - COM6 but I couldn't determine easily how those map to my USB ports. At that point I noticed that the device is getting VERY hot, so decided to stop.

Is it normal for it to get so hot? Combined with the "power surge" warning I thought it was safer to stop before smoke.

I was able to use QGC to flash my Pixhawk 2.4.8 with PX4 with no problems, so I am pretty sure there is nothing wrong with the port or with QGC.

Michael Mortensen

@Moderator
I am having a similar issue. I purchased 3 of the Flight Core 2 boards. And, I tried 3 different micro USB cables. I am not getting any power to any of the Flight Core 2 boards from my PC laptop. I am using Windows 11 as well. I am unable to connect to any port on the laptop. I did try to connect one of the boards to a Mac computer through the Micro USB to USB connection. The board started to heat up and I had to disconnect. Is there a specific Windows driver needed for the Flight Core 2? I am at a loss at this point.

Martin Lukac

I've had almost the exact same thing happen but I think ours got hot enough to desolder a part (see pictures). Feels like a manufacturing issue. Is there a way to send it in for an RMA/replacement/etc?

Here is more info:

We have a FC2.

The FC2 is brand new (purchased within the last couple months).

We did the following:

connected the USB cable '10' to J3.
connect a known working micro-usb cable to my laptop running QGC.
didn't here the usual windows 'new usb device sound'

This was the first time we connected this board. We didn't see any LED's turn on within a second or two so we picked it up by the corners and noticed it was VERY hot.

We quickly disconnected everything.

We inspected the board and found a component on the bottom looks like it shifted off it's solder pads. See attached picture. We didn't inspect the board before hadn

What could have caused this? Especially given a few others have had this.

Thanks!

Vinny

Hi @VictorG
It is not unexpected to see some windows machines complain.
Our MCU does not enumerate as a normal USB device with current requirements reporting. So, some PCs will correctly complain.

Our goal with USB based powering is for ease of use with configuration. However, if this is posing a problem in your specific system, connect it as it would be required for a sUAS by using our power module and using an MCBL-00062 into the power port.
https://docs.modalai.com/flight-core-v2-power/#j13---voxl-power-module-v3-input
https://docs.modalai.com/cable-datasheets/#mcbl-00062
This will prevent pretty much all current draw on the USB port: https://docs.modalai.com/flight-core-datasheets-v2-functional-description/#power-supply-and-power-source-mux-details

Now as for the heating, we do know the MCU can get hot. It has no sleep modes or throttling in it when running PX4/etc, so it is not uncommon, but it will still work and is within specs. Some folks have used heatsinks or small fans with success to minimize the effect, such as: https://www.modalai.com/products/voxl-cooling-fan?_pos=1&_psq=fan&_ss=e&_v=1.0

Hope this helps explain things a bit.

Vinny

Hi @Martin-Lukac
Well that's not good. Your board will not work with that chip busted off like that.
Please use our RMA process and we'll get this assessed for for you:
https://www.modalai.com/pages/rma

Vinny

Hi @Michael-Mortensen
Please see the post to Victor about using the power module instead of just USB.
Let us know if that helps.
Thanks!

hula

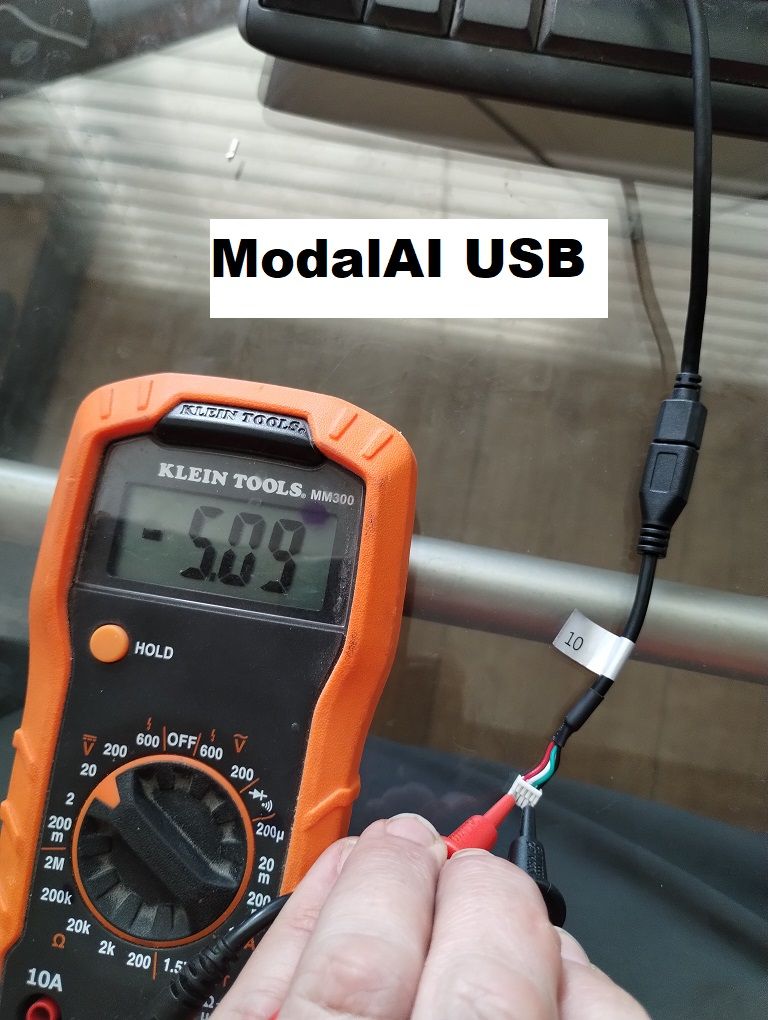

@Vinny I hate to say this, but I believe you have a batch of defective USB cables. I was running into the same issue as @VictorG and @Michael-Mortensen , so I broke out the multimeter and confirmed that 5V and GND are swapped (note the negative 5V instead of +5V). I grabbed another generic USB cable that I had on-hand and the FCv2 powered up and connected to QGC fine.

ModalAI Support was kind enough to send me 3x replacement USBs...but unfortunately they are all mis-wired as well.

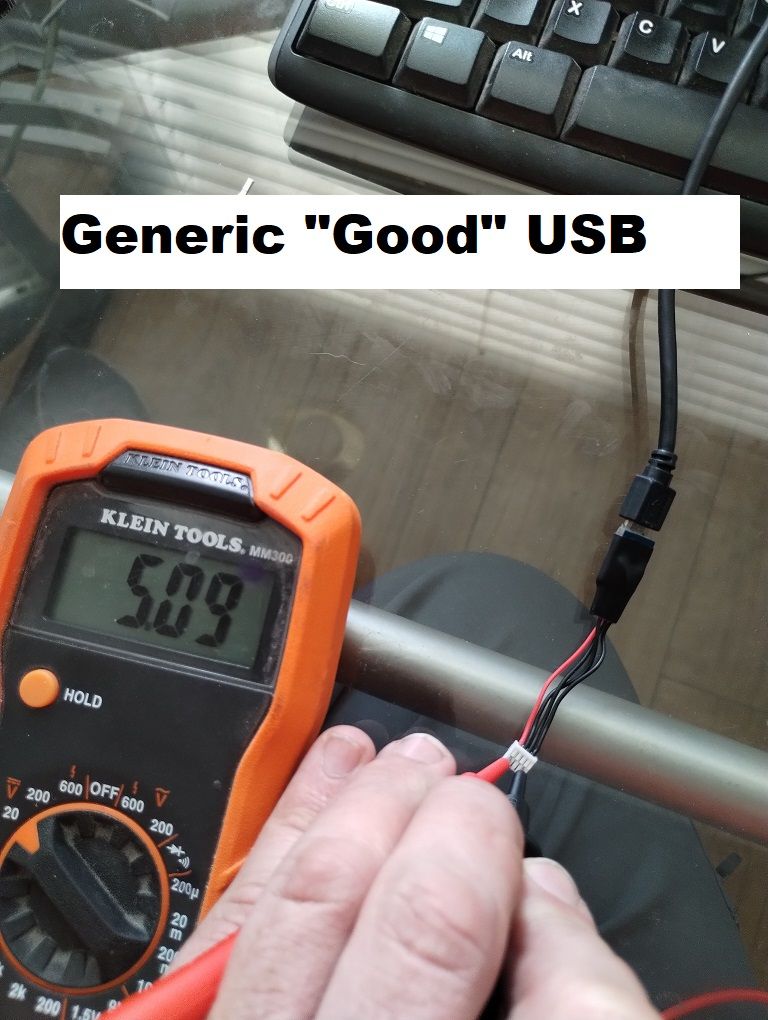

Correct USB cable.jpg

Vinny

Hi @hula
Interesting. I will investigate. The cable appears as it should according to our tech docs and every batch is sample tested but I will inspect further and respond tomorrow.
https://docs.modalai.com/cable-datasheets/#mcbl-00010
Thanks
Vinny

Vinny

Hi @hula
YOU ARE CORRECT!
I found a whole bag of mis-wired MCBL-00010's in our inventory.
I'll work with our @Moderator to figure out a plan.
We will likely need to setup an email where any customer can let us know if they have offending cables and we will send replacements promptly.
