    "Adopted" drone, help setting up

    Ask your questions right here!
    2
    19
    52
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • J
      jbhines929
      last edited by

      Hello- I had an older system transferred to me that we are trying to get working on a project. It's an old IF1000 with a microhard setup. I got the Microhards paired, but I cannot get any comms to QGC or Mission Planner. All I want to do is to use the microhard as a telemetry link. I don't want or need any additional features, all I'm trying to accomplish is to use this old drone as a platform for some test equipment. Can someone please advise how I should proceed? Also, I saw in some documentation about connecting to the VOXL onboard wifi. The SSID for that appears to have been changed from default by the previous owner. I have experience with 'standard' pixhawks, but none with the ModalAI hardware. Any assistance would be greatly appreciated.

      Thanks!!
      ~J

      tomT 1 Reply Last reply Reply Quote 0
      • tomT
        tom admin @jbhines929
        last edited by

        @jbhines929 Does your drone have a VOXL on it as well? Or just microhard and some other hardware?

        J 1 Reply Last reply Reply Quote 0
        • J
          jbhines929 @tom
          last edited by

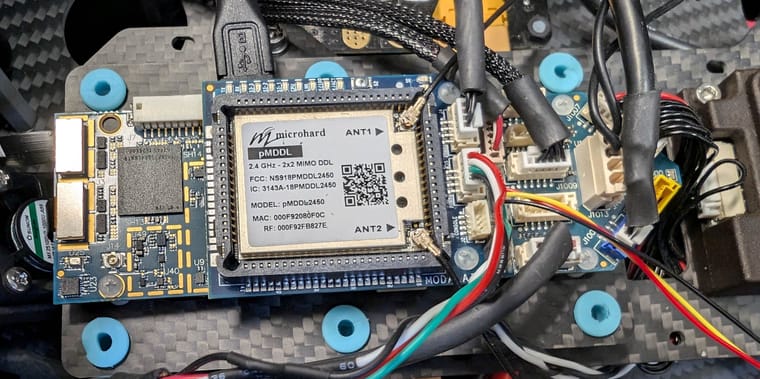

          @tom Thanks for the reply. It is a VOXL Flight, so far as I can tell. Has the microhard 'hat' on it. I was able to connect USB. I found a tutorial on your website about setting up the microhard. I was able to connect with USB and ADB and able to go through the setup steps. I appear to be able to ping the VOXL from the GCS computer. I wasn't able to connect yet with MP or QGC, but that may have been because I only had a USB boot Ubuntu and not a full install. (USGOVT computer and it's a pain to install non supported OSes) Hope to find out more later.


          tomT 1 Reply Last reply Reply Quote 0
          • tomT
            tom admin @jbhines929
            last edited by

            @jbhines929 I'm curious what SDK is on that voxl-flight (It's been a while since I've worked with VOXL 1 personally so it'll take me a sec to get my brain aligned)

            What do you see if you ADB in and run the following:

            voxl-version

            voxl-inspect-services

            J 1 Reply Last reply Reply Quote 0
            • J
              jbhines929 @tom
              last edited by

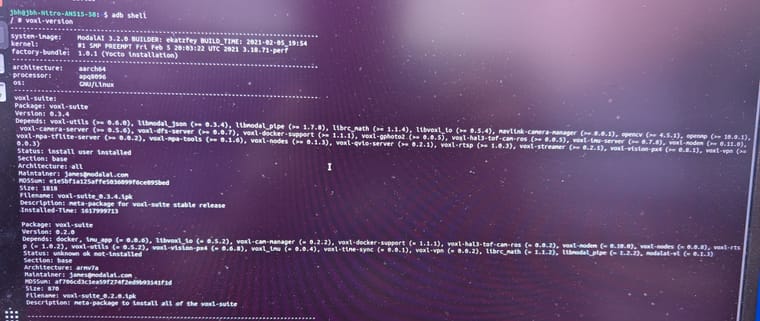

              @tom no worries! It is a very old system by drone terms. I believe it was acquired in 2020. voxl_version.jpg

              J 1 Reply Last reply Reply Quote 0
              • J
                jbhines929 @jbhines929
                last edited by

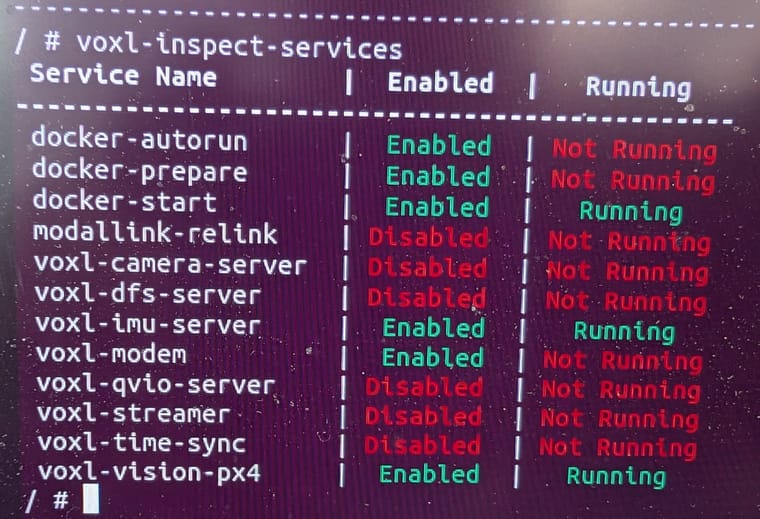

                @jbhines929 VOXL_inspect_services.jpg

                looks like a lot of services aren't running

                J 1 Reply Last reply Reply Quote 0
                • J
                  jbhines929 @jbhines929
                  last edited by

                  @jbhines929 would following the procedure here: https://docs.modalai.com/flash-system-image/ reset it to factory defaults?

                  tomT 1 Reply Last reply Reply Quote 0
                  • tomT
                    tom admin @jbhines929
                    last edited by

                    @jbhines929 I would recommend loading the latest VOXL 1 SDK: 1.2.0 which can be downloaded from downloads.modalai.com

                    You'll want to follow the steps here: https://docs.modalai.com/flash-system-image/#flashing-a-voxl-sdk-release

                    J 1 Reply Last reply Reply Quote 0
                    • J
                      jbhines929 @tom
                      last edited by

                      @tom I appear to have been successful in updating that. I still haven't been able to connect to VOXL via microhard on QGC. What is the port to use?

                      tomT 1 Reply Last reply Reply Quote 0
                      • tomT
                        tom admin @jbhines929
                        last edited by

                        @jbhines929 You'll want to establish a connection like this, where "Server Address" is the IP of the VOXL on the microhard network

                        You can check this with ifconfig on VOXL


                        tomT 1 Reply Last reply Reply Quote 0
                        • tomT
                          tom admin @tom
                          last edited by

                          @tom On VOXL make sure you've run voxl-configure-modem and selected microhard in the menu

                          J 1 Reply Last reply Reply Quote 0
                          • J
                            jbhines929 @tom
                            last edited by

                            @tom I tried that just now. I am able to ping across the microhard network. I can ping the laptop -> VOXL. I can ping VOXL -> laptop, I can even ping each microhard device from either the VOXL or the laptop. It just seems to not be making that final link to QGC. I ran and reran voxl-configure-modem, selecting microhard. I tried with both the default IP and a custom IP. Do I have to do some kind of configureation with teh mavlink server? (I am getting way out of my depth here, lol)

                            J 1 Reply Last reply Reply Quote 0
                            • J
                              jbhines929 @jbhines929
                              last edited by

                              @jbhines929 (I should also specifiy that this is on a personal, fully open laptop, tried on Windows 11 and on Ubuntu) So there shouldn't be any security settings in the way re: ports.

                              J 1 Reply Last reply Reply Quote 0
                              • J
                                jbhines929 @jbhines929
                                last edited by

                                @jbhines929 Ok I retract the last post. I just tried again and I am able to connect over Microhard/QGC on windows. Ubuntu wasn't working, but seems like Windows is functional. I'll do some more tests. Otherwise, thank you very much for your assistance!

                                tomT J 2 Replies Last reply Reply Quote 0
                                • tomT
                                  tom admin @jbhines929
                                  last edited by

                                  @jbhines929 Interesting I wonder if that port is being blocked on your Ubuntu machine for some reason

                                  1 Reply Last reply Reply Quote 0
                                  • J
                                    jbhines929 @jbhines929
                                    last edited by

                                    @jbhines929 I was able to do a test flight, however in Position mode it won't hold gps position (even though I have good # satellites). I wonder if this is something due to the optical flow and VOXL?

                                    tomT 1 Reply Last reply Reply Quote 0
                                    • tomT
                                      tom admin @jbhines929
                                      last edited by

                                      @jbhines929 Hmm I would make sure you have the correct px4 parameter set loaded on your flight core, i.e. "outdoor_gps.params" from https://gitlab.com/voxl-public/voxl-sdk/utilities/voxl-px4-params/-/blob/master/params/v1.14/EKF2_helpers/outdoor_gps.params?ref_type=heads

                                      J 1 Reply Last reply Reply Quote 0
                                      • J
                                        jbhines929 @tom
                                        last edited by

                                        @tom Thank you very much for all your help on this. I ended up getting it to work, not sure why it wasnt on Ubuntu earlier. Probably user error! 🙂

                                        Honestly, got to our wits end with it and a colleague ended up blasting the PX4 firmware and putting Arducopter on it. Seems to be working fine now, with VOXL apparently just handling sending packets to the microhard. I really appreciate your support and answering my questions, they were most helpful.

                                        tomT 1 Reply Last reply Reply Quote 0
                                        • tomT
                                          tom admin @jbhines929
                                          last edited by

                                          @jbhines929 No problem, thanks for the patience!
