@zauberflote1

Support Report: Full VIO Stabilization and Successful Flight Test

Summary (2026-01-05)

Thanks to your continuous guidance and the results of the high-precision Kalibr calibration performed today, we have achieved ultimate stability with our custom drone.

Flight Test Results

• Success: We achieved a perfectly stable hover and flight for an entire battery duration (approximately 12 minutes) without dropping out of Position mode once.
• Stability: The previously observed 30cm radius wobble has completely disappeared, and the drone now holds its position with rock-solid stability.

Key Factors for Success

1. High-Precision Calibration with Kalibr:
   We discovered a discrepancy of up to 25mm between the physical measurements (CAD/ruler) and the "true sensor positions" mathematically derived by Kalibr. Resolving this minute misalignment was the most critical factor in achieving stability.
2. Parameter Optimization:
   By applying the precision calibration values and setting up_slam_chi2_multipler to 3.0, we found the optimal balance between feature retention and estimation accuracy.
3. Coordinate System Alignment:
   We corrected the signs in extrinsics.conf to account for the VOXL 2 Mini's IMU (imu_apps) being mounted at a Roll 180-degree orientation relative to the frame.

Gratitude

We would like to express our deepest gratitude for your incredibly accurate and thorough support over the past several days. Your advice regarding the potential inaccuracy of physical measurements and the recommendation to use Kalibr was the direct key to this success.

@zauberflote1

Support Follow-up: VIO Stability Improved with chi2 Tuning - Kalibr Planned for Tomorrow

Thank you very much for your detailed advice. It was extremely helpful.

Progress Update

1. Successful VIO Stabilization via up_slam_chi2_multipler

Based on your suggestion, we adjusted the up_slam_chi2_multipler in estimator_config.yaml.

• Finding: Setting it to 3.0 (default was 1.0) resulted in a dramatic improvement.
• Result: The drone can now hover in Position mode for over 5 minutes without losing feature points or dropping to Altitude mode. Previously, it would fail within 10-20 seconds.

2. Current Status and Remaining Issues

• Drift: While the position lock is maintained, there is a slight "swaying" or drift (within approximately 30cm) during hovering.
• Cause: We suspect this is due to the CAM-IMU extrinsics still relying on physical measurements (CAD values), which don't perfectly match the actual hardware alignment.

3. Extrinsics Fix (imu_apps_body)

We noticed an error in the voxl-vision-hub logs regarding a missing body to imu_apps_body transform. We added this entry to extrinsics.conf, which ensured the system recognizes the coordinate frames correctly while using OpenVINS in imu_body_frame_mode.

Plan for Tomorrow: Kalibr Calibration

We have successfully set up the Kalibr environment on our PC using Docker and prepared a script to convert VOXL MPA logs to ROS bags.

• Today, we attempted a preliminary run, but the tag detection rate was low due to monitor reflections and tag size discrepancies.
• Tomorrow, we will use the official AprilGrid pattern and perform a clean calibration to obtain precise Extrinsics and Timeshift values.

@Eric-Katzfey
Could you please give me any hints you might have?

@zauberflote1
Thank you for your support. I followed your advice and changed the settings again today.
It's much better than yesterday, but the reduction in feature points is still there. I've made a video of the current situation, so please check it out.
https://www.youtube.com/watch?v=H-_lLwPrPOE

I would like to ask some questions today as well, so thank you in advance.

Support Request: VIO Instability on Custom Drone Frame (Compared to Stinger) - Follow-up

Summary

We have successfully configured a VOXL 2 Mini on a Stinger frame (D0013) with SDK 1.6.2, and VIO works perfectly in our indoor environment.
However, we are facing persistent VIO instability on our custom drone frame, which uses the same VOXL 2 Mini and camera sensors, despite trying extensive troubleshooting.

The core issue is that feature points drop to 0 and VIO quality drops to 0% specifically when the drone is hovering or stationary. Paradoxically, when we move the drone or shine a bright light on the floor, the feature count improves and VIO holds for longer.

Update: After fixing camera extrinsics and setting sync_config: false, VIO performance improved significantly ("much better than yesterday"). However, the issue persists: feature points still drop to 0 during hovering, while Stinger maintains ~22 features in the same conditions.

Hardware Setup

• Flight Controller: VOXL 2 Mini (SDK 1.6.2)
• Cameras:
  • tracking_front (Ar0144)
  • tracking_down (Ar0144, rotated 90 degrees)
  • Note: This custom frame DOES NOT have a Hi-Res camera. It only has 2 tracking cameras.
  • However, since selecting "Tracking only" in the SKU configuration prevented us from entering Position Mode, we configured it as "Hi-Res + 2 Tracking" and then manually disabled the hires camera in voxl-camera-server.conf.

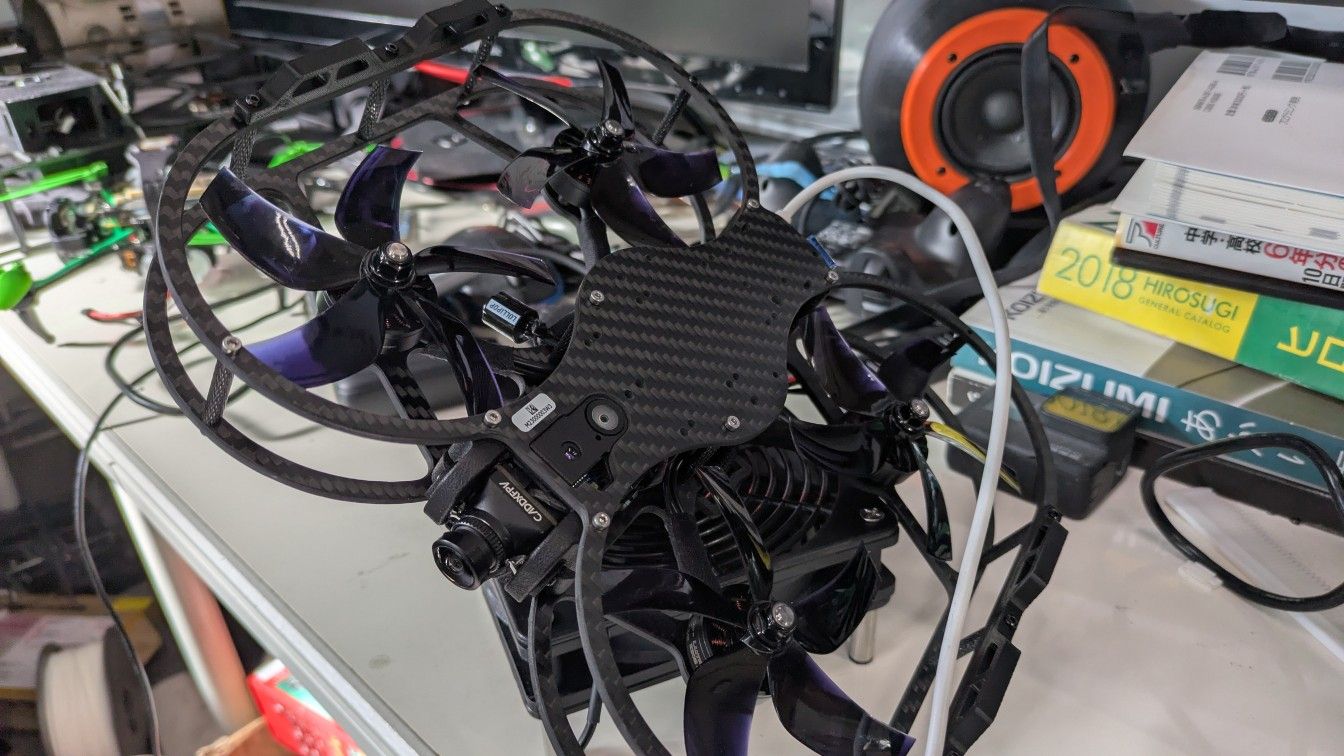

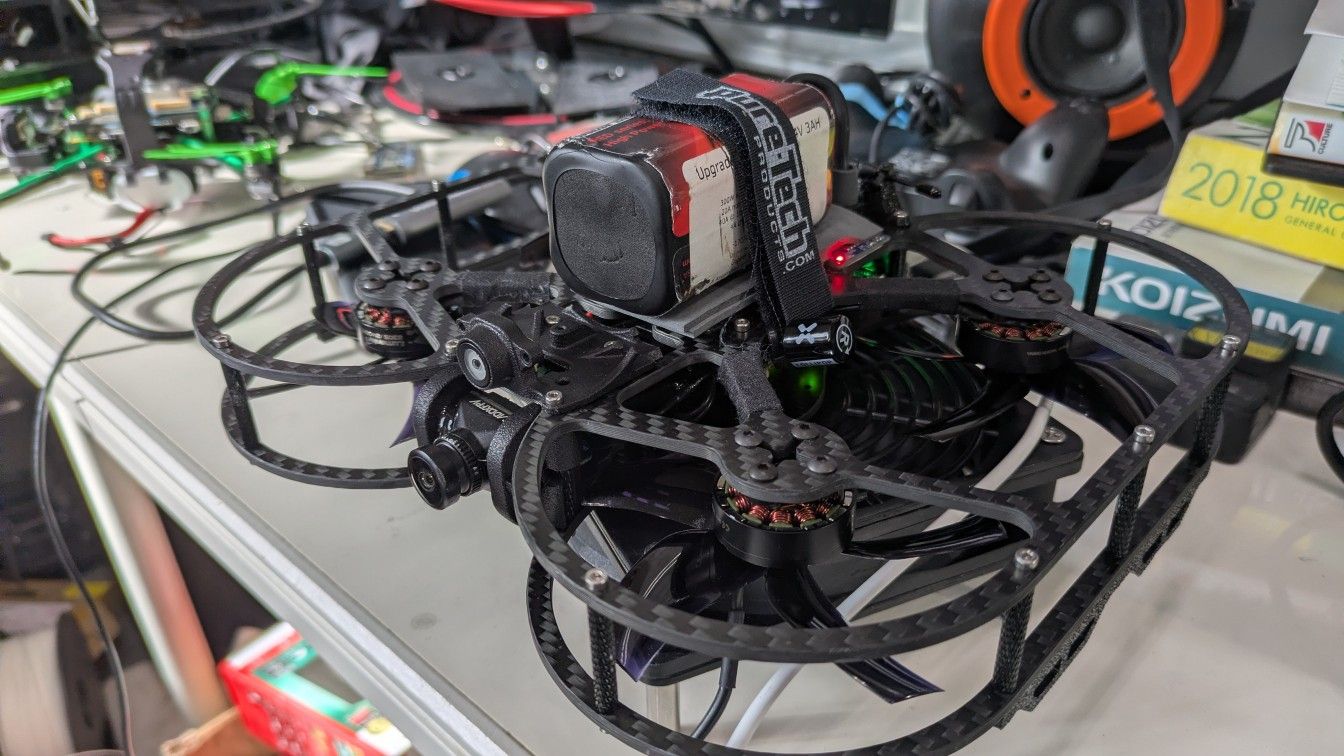

• Frame: Custom frame (Carbon fiber), designed in CAD by ourselves.

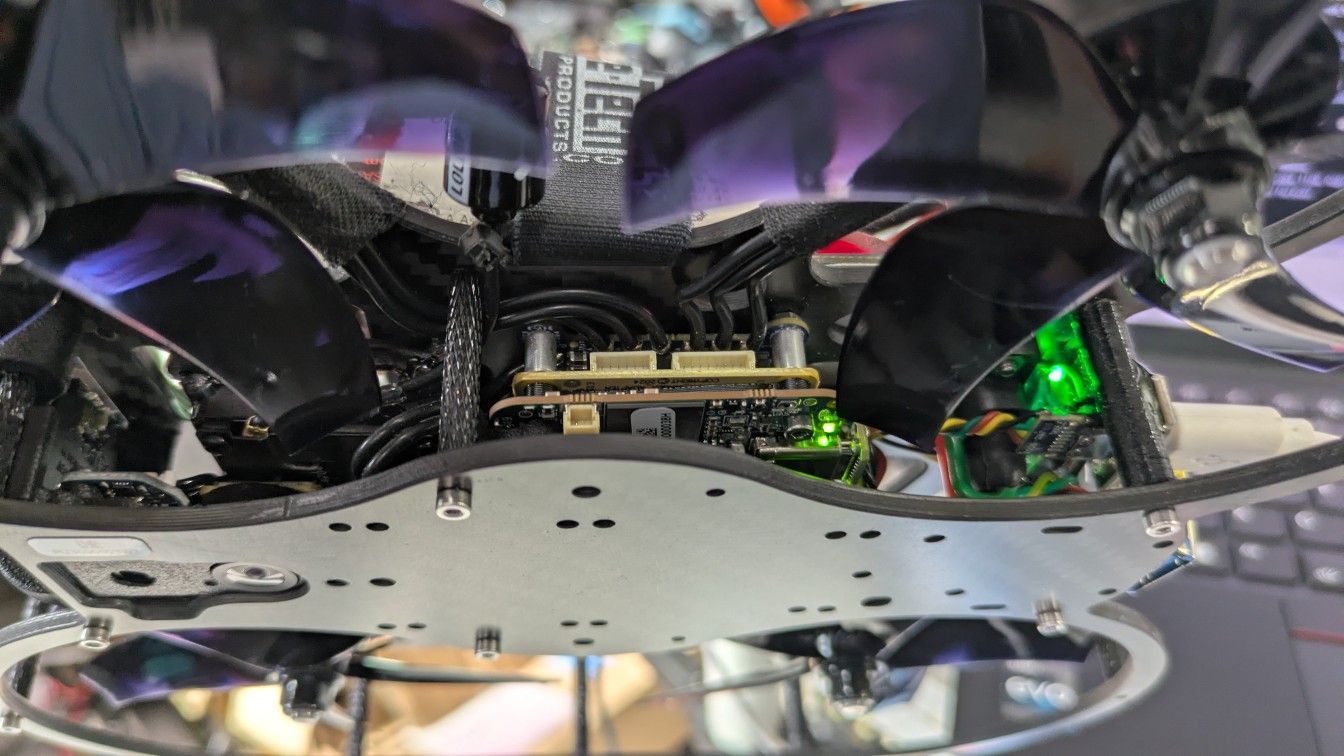

  • Note: We identified that the frame was reflecting into the camera view. We have covered the reflective parts with black tape, which improved stability slightly but did not solve the issue.
• Camera Positions relative to IMU (FRD coordinate system):
  • FRONT camera:
    • Forward (X): +70.8mm
    • Right (Y): -19.4mm (Left direction)
    • Down (Z): -20mm (Up direction)
  • DOWN camera:
    • Forward (X): +38mm
    • Right (Y): -19.4mm (Left direction)
    • Down (Z): +9mm (Down direction)
• Camera Calibration: Both FRONT and DOWN cameras have calibration errors ≤ 0.3 (excellent calibration quality).
• Camera Focus: Focus is properly adjusted for both cameras.

Symptoms

1. Hovering/Stationary: There are no issues when the drone is constantly moving. However, when it remains stationary for more than 10-20 seconds, feature points (num_pts) gradually decrease and eventually hit 0. VIO Quality then drops to 0%.
2. Moving/Flight: When moving the drone (in flight or by hand), feature points increase to the max of ~30 and VIO recovers.
3. Lighting: Shining a strong light on the floor extends the time before VIO fails, but it eventually drops to 0.
4. Comparison: A Stinger drone in the exact same indoor environment and lighting holds position perfectly with default settings, maintaining ~22 features even when stationary.

Recent Troubleshooting Steps (Today)

IMU Noise Parameter Testing

We compared kalibr_imu_chain.yaml between Stinger and our custom frame and found they have identical values. Since different frames should have different noise characteristics, we tested adjusting IMU noise parameters:

1. Increased to 1.5x: No noticeable difference
2. Decreased to 0.8x: Performance worsened
3. Increased to 2x: Position mode could be maintained, but the drone oscillated (wobbled) excessively
4. Reverted to default: Best performance

Conclusion: IMU noise parameters are not the root cause. Default values are optimal.

Previous Troubleshooting Steps (All Reverted to Default)

We have tried the following configuration changes, but none provided a permanent solution, so we have reverted everything to default settings (except for necessary fixes):

1. VIO Config (estimator_config.yaml):
   • Tried zupt_only_at_beginning: false (to enable ZUPT during flight). -> No effect / Worsened.
   • Tried increasing num_pts (50 -> 150) and lowering fast_threshold (15 -> 5). -> VIO stopped working completely.
2. Camera Config (voxl-camera-server.conf):
   • Tried increasing exposure_max_us (12ms -> 33ms). -> QGC rejected position mode more strictly.
   • Tried increasing gain_max (8000 -> 16000). -> No significant improvement.
3. IMU Config (voxl-imu-server.conf):
   • Tried lowering imu0_lp_cutoff_freq_hz (92Hz -> 42Hz, 30Hz, 20Hz). -> No effect.
   • FFT analysis showed 200-240Hz vibrations, but filtering them did not improve VIO. Stinger shows similar vibrations but stable VIO.
4. Calibration:
   • Performed voxl-calibrate-camera with the frame taped to prevent reflections.
   • Updated extrinsics.conf and kalibr_imucam_chain.yaml with precise physical measurements.
5. OpenVINS Config (voxl-open-vins-server.conf):
   • Set sync_config: false (based on support advice). -> Significant improvement.
   • Tried sync_config: true (to match Stinger). -> Performance worsened.
   • Current: sync_config: false (required for custom frame).

Current Configuration

• SDK: 1.6.2
• voxl-vision-hub.conf: en_vio: true, vio_pipe: ov (OpenVINS), offboard_mode: vfc
• voxl-open-vins-server.conf: sync_config: false (required for custom frame)
• voxl-camera-server.conf: Default exposure (12ms), hires disabled.
• estimator_config.yaml: Default (OpenVINS default).
• voxl-imu-server.conf: Default (92Hz).
• kalibr_imu_chain.yaml: Default (same as Stinger).
• kalibr_imucam_chain.yaml: Updated with precise physical measurements for camera extrinsics.

Key Differences from Stinger

1. sync_config: Stinger works with sync_config: true, but our custom frame requires sync_config: false.
2. Feature point behavior: Stinger maintains ~22 features when stationary, while our custom frame drops to 0.
3. IMU noise parameters: Identical values, but custom frame may have different vibration characteristics.

Question

Why does the custom drone fail to maintain feature points in the same environment where the Stinger works perfectly?

Since:

• Frame is designed in CAD with precise measurements
• Extrinsics are correctly measured and configured (FRONT: Forward 70.8mm, Left 19.4mm, Up 20mm; DOWN: Forward 38mm, Left 19.4mm, Down 9mm)
• Camera calibration errors are ≤ 0.3 for both cameras (excellent quality)
• Camera focus is properly adjusted
• sync_config: false is required (unlike Stinger)
• IMU noise parameter adjustments don't help
• Frame reflections are taped off

What other factors could cause OpenVINS to lose feature points specifically during hovering/stationary periods on a custom frame?

We have attached the following configuration files:

• kalibr_imu_chain.yaml　https://drive.google.com/file/d/1xk3hV08xkCsr_76CaHUp71kmJrE4qDip/view?usp=sharing
• kalibr_imucam_chain.yaml
  https://drive.google.com/file/d/1fTq8KKdH1gERFFMk34GBBJd5IRFqAw9Z/view?usp=sharing
• estimator_config.yaml
  https://drive.google.com/file/d/1vtH50HK-VgsAOCAZEtjA27-kU0kD_aic/view?usp=sharing
• voxl-open-vins-server.conf
  https://drive.google.com/file/d/1seNpGRoWwLbVvCMlXYlQeMPOkTn04nc0/view?usp=sharing

@Eric-Katzfey
maiden flight

@Eric-Katzfey
P.S.
Camera calibration has been completed for both the front and down cameras, with both being below 0.3.
Camera position and rotation have also been set (same rotation as STINGER).
Camera focus is also perfectly adjusted.

@Eric-Katzfey

Support Request: VIO Instability on Custom Drone Frame (Compared to Stinger)

Summary

We have successfully configured a VOXL 2 Mini on a Stinger frame (D0013) with SDK 1.6.2, and VIO works perfectly in our indoor environment.
However, we are facing persistent VIO instability on our custom drone frame, which uses the same VOXL 2 Mini and camera sensors, despite trying extensive troubleshooting.

The core issue is that feature points drop to 0 and VIO quality drops to 0% specifically when the drone is hovering or stationary. Paradoxically, when we move the drone or shine a bright light on the floor, the feature count improves and VIO holds for longer.

Hardware Setup

• Flight Controller: VOXL 2 Mini (SDK 1.6.2)
• Cameras:
  • tracking_front (Ar0144)
  • tracking_down (Ar0144, rotated 90 degrees)
  • Note: This custom frame DOES NOT have a Hi-Res camera. It only has 2 tracking cameras.
  • However, since selecting "Tracking only" in the SKU configuration prevented us from entering Position Mode, we configured it as "Hi-Res + 2 Tracking" and then manually disabled the hires camera in voxl-camera-server.conf.
• Frame: Custom frame (Carbon fiber).
  • Note: We identified that the frame was reflecting into the camera view. We have covered the reflective parts with black tape, which improved stability slightly but did not solve the issue.

Symptoms

1. Hovering/Stationary: There are no issues when the drone is constantly moving. However, when it remains stationary for more than 10-20 seconds, feature points (num_pts) gradually decrease and eventually hit 0. VIO Quality then drops to 0%.
2. Moving/Flight: When moving the drone (in flight or by hand), feature points increase to the max of ~30 and VIO recovers.
3. Lighting: Shining a strong light on the floor extends the time before VIO fails, but it eventually drops to 0.
4. Comparison: A Stinger drone in the exact same indoor environment and lighting holds position perfectly with default settings.

Troubleshooting Steps Taken (All Reverted to Default)

We have tried the following configuration changes, but none provided a permanent solution, so we have reverted everything to default settings (except for necessary camera ID fixes):

1. VIO Config (estimator_config.yaml):
   • Tried zupt_only_at_beginning: false (to enable ZUPT during flight). -> No effect / Worsened.
   • Tried increasing num_pts (50 -> 150) and lowering fast_threshold (15 -> 5). -> No effect.
2. Camera Config (voxl-camera-server.conf):
   • Tried increasing exposure_max_us (12ms -> 33ms). -> QGC rejected position mode more strictly.
   • Tried increasing gain_max (8000 -> 16000). -> No significant improvement.
3. IMU Config (voxl-imu-server.conf):
   • Tried lowering imu0_lp_cutoff_freq_hz (92Hz -> 42Hz, 20Hz). -> No effect.
4. Calibration:
   • Performed voxl-calibrate-camera with the frame taped to prevent reflections.
   • Updated extrinsics.conf with measured values.

Current Configuration (Clean State)

• SDK: 1.6.2 (Clean install)
• voxl-vision-hub.conf: en_vio: true, vio_pipe: ov (OpenVINS)
• voxl-camera-server.conf: Default exposure (12ms), hires disabled.
• estimator_config.yaml: Default (OpenVINS default).
• voxl-imu-server.conf: Default (92Hz).

Question

Why does the custom drone fail to maintain feature points in the same environment where the Stinger works perfectly?
Since "shining a light" and "moving the drone" help, it seems related to signal-to-noise ratio or feature detection thresholds, but software parameter tuning has failed.

Are there any specific IMU noise characteristics or vibration issues on custom frames that could cause OpenVINS to reject static features? Or are there other low-level parameters we should look at for a custom frame build?

We have attached the following logs from a failed flight attempt:
voxl-px4.log
voxl-vision-hub.log
voxl-open-vins-server.log

@Eric-Katzfey
Thank you for your reply. I tried various SKU configurations and was able to successfully enter position mode. Thank you.
The current SKU is MRB-D0013-6-V2-C33-T7-M22-X14.

@YUUJI-INOUE said in Persistent PX4 Sensor/Accel Failure on Stinger (D0013) with SDK 1.6.2 + Dev IMU/OV Servers:

@Eric-Katzfey

Updated Support Request: Parameter Fix Attempt & Remaining Accelerometer/Position Mode Issues

Following the advice to update parameters, we have made progress but still cannot enter Position Mode due to persistent sensor checks failures.

Actions Taken

1. Parameter Reset & Load:
   • Executed voxl-configure-px4-params --wizard and selected D0013 (Stinger).
   • Confirmed that /data/px4/param/parameters is now created and populated.
2. Battery Configuration Fix:
   • Manually corrected BAT_N_CELLS to 4 (was defaulting to 6) and BAT_LOW_VOLT to 14.0V.
   • This successfully resolved the "Low Voltage" warning in QGC.
3. Re-Calibration:
   • Performed fresh Accelerometer, Level Horizon, and Compass calibrations in QGC.
   • Performed Camera calibration.

Current Status

• Manual Mode: OK. We can Arm the drone and spin motors in Manual Mode. We have also performed a successful test flight in Manual Mode.
• VIO: OK. The virtual drone in Web Portal follows the real drone perfectly.
• Position Mode: FAILED.
  • QGC shows "Ready for flight" briefly after reboot, but rejects Arming (Command denied).
  • After disarming from a Manual Mode test, Position Mode switches to "Not Ready".
• Web Portal System Check: FAILED.
  • voxl-px4 still reports sensor_accel: result false.
  • Values (e.g., z: 9.70) seem correct, but the check fails.

Persistent Logs Errors (New Logs Attached)

Despite the parameter fix, voxl-px4.log still shows communication timeouts with the sensors:

ERROR [muorb] [sensors] Accel #0 fail: TIMEOUT!
ERROR [qshell] Command failed
ERROR [muorb] [drivers__device] i2c probe failed

Questions

1. Since we can Arm in Manual Mode (suggesting the IMU hardware is working) and have loaded the correct D0013 parameters, why does voxl-px4 still report sensor_accel: result false with timeouts?
2. Is there a specific driver or timing parameter in SDK 1.6.2 (with the dev branch IMU server) that causes these spurious timeouts on the Stinger?
3. What is preventing Position Mode Arming even when VIO is healthy and Manual Arming works?

We have attached the latest logs (voxl-px4.log, voxl-vision-hub.log) from this new configuration state.
voxl-px4.log
voxl-vision-hub.log

I've been hooked on this for two weeks now. Can someone tell me how to set up STINGER VER1 from scratch?

@Eric-Katzfey

Updated Support Request: Parameter Fix Attempt & Remaining Accelerometer/Position Mode Issues

Following the advice to update parameters, we have made progress but still cannot enter Position Mode due to persistent sensor checks failures.

Actions Taken

1. Parameter Reset & Load:
   • Executed voxl-configure-px4-params --wizard and selected D0013 (Stinger).
   • Confirmed that /data/px4/param/parameters is now created and populated.
2. Battery Configuration Fix:
   • Manually corrected BAT_N_CELLS to 4 (was defaulting to 6) and BAT_LOW_VOLT to 14.0V.
   • This successfully resolved the "Low Voltage" warning in QGC.
3. Re-Calibration:
   • Performed fresh Accelerometer, Level Horizon, and Compass calibrations in QGC.
   • Performed Camera calibration.

Current Status

• Manual Mode: OK. We can Arm the drone and spin motors in Manual Mode. We have also performed a successful test flight in Manual Mode.
• VIO: OK. The virtual drone in Web Portal follows the real drone perfectly.
• Position Mode: FAILED.
  • QGC shows "Ready for flight" briefly after reboot, but rejects Arming (Command denied).
  • After disarming from a Manual Mode test, Position Mode switches to "Not Ready".
• Web Portal System Check: FAILED.
  • voxl-px4 still reports sensor_accel: result false.
  • Values (e.g., z: 9.70) seem correct, but the check fails.

Persistent Logs Errors (New Logs Attached)

Despite the parameter fix, voxl-px4.log still shows communication timeouts with the sensors:

ERROR [muorb] [sensors] Accel #0 fail: TIMEOUT!
ERROR [qshell] Command failed
ERROR [muorb] [drivers__device] i2c probe failed

Questions

1. Since we can Arm in Manual Mode (suggesting the IMU hardware is working) and have loaded the correct D0013 parameters, why does voxl-px4 still report sensor_accel: result false with timeouts?
2. Is there a specific driver or timing parameter in SDK 1.6.2 (with the dev branch IMU server) that causes these spurious timeouts on the Stinger?
3. What is preventing Position Mode Arming even when VIO is healthy and Manual Arming works?

We have attached the latest logs (voxl-px4.log, voxl-vision-hub.log) from this new configuration state.
voxl-px4.log
voxl-vision-hub.log
