Issues with indoor mapping speed and path planning with voxl-mapper



  • I have multiple questions regarding path planning with voxl-mapper:
    voxl-mapper version: 0.0.7

    My voxl-mapper config file is :

    voxl:~$ cat /etc/modalai/voxl-mapper.conf
    /**
     * This file contains configuration that's specific to voxl-mapper.
     */
    {
    	"tof_pipe":	"/run/mpa/tof",
    	"tof_enable":	true,
    	"tof_rate":	10,
    	"depth_pipe_0":	"/run/mpa/dfs_point_cloud",
    	"depth_pipe_0_enable":	false,
    	"extrinsics0_name":	"stereo_l",
    	"depth0_rate":	10,
    	"depth_pipe_1":	"/run/mpa/stereo_front_pc",
    	"depth_pipe_1_enable":	false,
    	"extrinsics1_name":	"stereo_front_l",
    	"depth1_rate":	10,
    	"depth_pipe_2":	"/run/mpa/stereo_rear_pc",
    	"depth_pipe_2_enable":	false,
    	"extrinsics2_name":	"stereo_rear_l",
    	"depth2_rate":	10,
    	"depth_pipe_3":	"/run/mpa/dfs_point_cloud",
    	"depth_pipe_3_enable":	false,
    	"extrinsics3_name":	"stereo_l",
    	"depth3_rate":	10,
    	"robot_radius":	0.3,
    	"voxel_size":	0.20000000298023224,
    	"voxels_per_side":	16,
    	"esdf_save_path":	"/data/voxl_mapper/esdf_map",
    	"tsdf_save_path":	"/data/voxl_mapper/tsdf_map",
    	"mesh_save_path":	"/data/voxl_mapper/mesh.ply",
    	"esdf_max_distance":	4,
    	"esdf_min_distance":	0.10000000149011612,
    	"esdf_default_distance":	2,
    	"esdf_inner_sphere_radius":	0.20000000298023224,
    	"esdf_outer_sphere_radius":	0.600000023841858,
    	"rrt_min_distance":	0.2,
    	"rrt_max_runtime_nanoseconds":	1000000000,
    	"rrt_use_first_solution":	false,
    	"rrt_treat_unknown_as_occupied":	true,
    	"rrt_send_tree":	false,
    	"loco_num_segments":	10,
    	"loco_derivative_to_optimize":	3,
    	"loco_poly_degree":	10,
    	"loco_smoothness_cost_weight":	2.5,
    	"loco_collision_cost_weight":	14,
    	"loco_waypoint_cost_weight":	0,
    	"loco_min_collision_sampling_dist":	0.05,
    	"loco_add_waypoints":	true,
    	"loco_scale_time":	true,
    	"loco_split_at_collisions":	true,
    	"loco_resample_trajectory":	true,
    	"loco_verbose":	false
    }



    voxl-vision-px4.conf file

    voxl:~$ cat /etc/modalai/voxl-vision-px4.conf
    {
    	"config_file_version":	1,
    	"qgc_ip":	"192.168.8.60",
    	"en_secondary_qgc":	false,
    	"secondary_qgc_ip":	"192.168.1.214",
    	"qgc_udp_port_number":	14550,
    	"udp_mtu":	512,
    	"en_localhost_mavlink_udp":	true,
    	"localhost_udp_port_number":	14551,
    	"en_vio":	true,
    	"en_voa":	true,
    	"en_send_vio_to_qgc":	false,
    	"en_send_voa_to_qgc":	false,
    	"voa_upper_bound_m":	-0.15000000596046448,
    	"voa_lower_bound_m":	0.15000000596046448,
    	"en_set_clock_from_gps":	true,
    	"en_force_onboard_mav1_mode":	true,
    	"en_reset_px4_on_error":	true,
    	"qvio_auto_reset_quality":	0.00050000002374872565,
    	"horizon_cal_tolerance":	0.300000011920929,
    	"offboard_mode":	"trajectory",
    	"follow_tag_id":	0,
    	"figure_eight_move_home":	true,
    	"en_tag_fixed_frame":	false,
    	"fixed_frame_filter_len":	5,
    	"en_transform_mavlink_pos_setpoints_from_fixed_frame":	false
    }


    1. The following is the image provided in the gitlab repo:
      https://gitlab.com/voxl-public/voxl-sdk/services/voxl-mapper/-/raw/master/images/path_plan.pngalt text
      This map has generated both red and blue paths but none of my two maps shown below have blue path. Has the blue path been removed in the new voxl-mapper version?

    2. I am confused as to how I should select the goal point for the drone to fly to, because it is very hard to visualize exactly where the goal point selected in the voxl mapper is located in the room.
      Is it the right apporach to view the map from the top (i.e. from z axis pointing outward the screen: last image) and then select the "goal point"?

    3. In the last image (viewed from z axis) why does the voxl-mapper create a zig zag path, whereas a straight path is enough to reach the goal point?

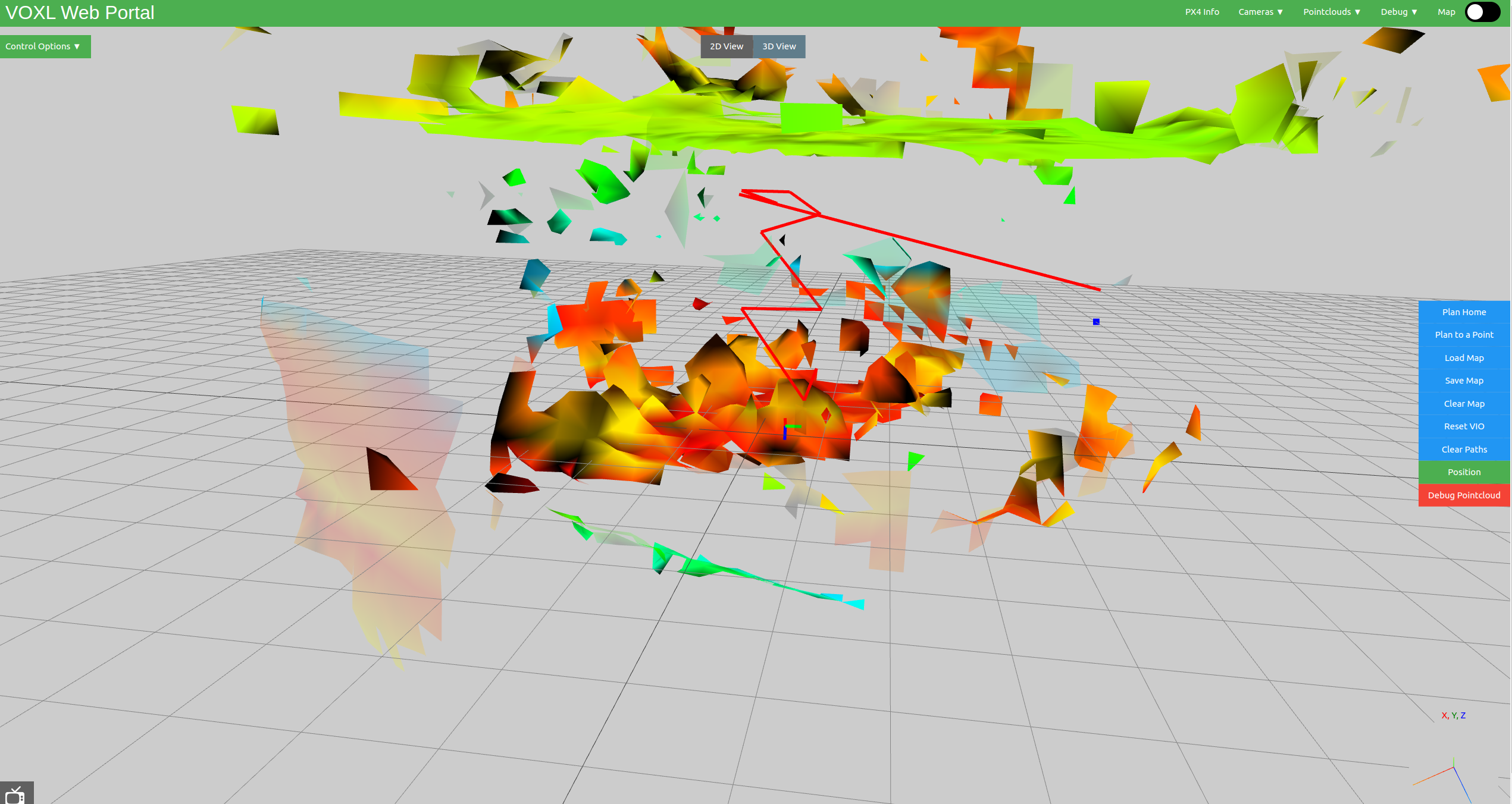

      Screenshot from 2022-10-03 12-04-14.png

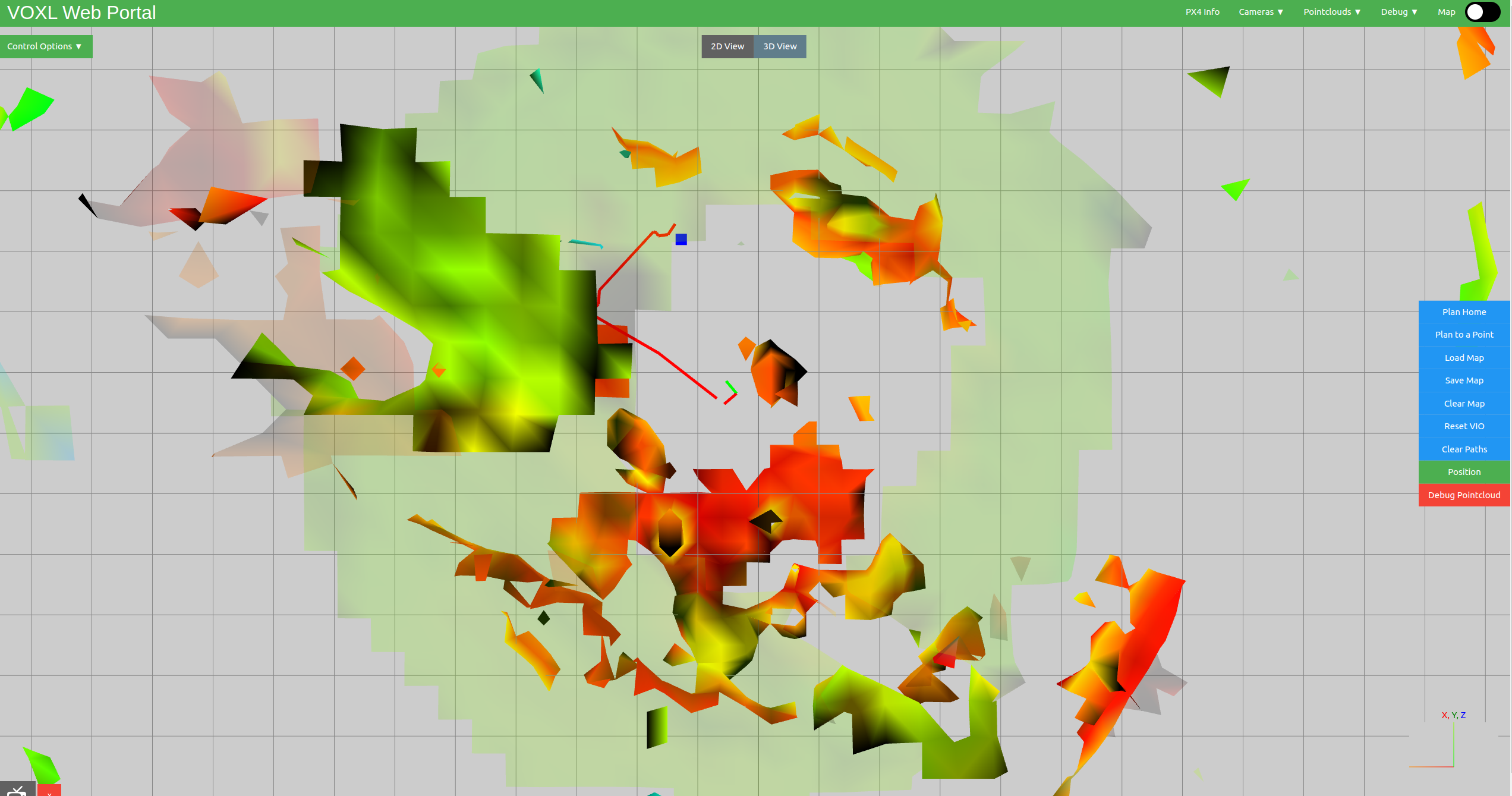

    Screenshot from 2022-10-03 14-01-26.png

    1. Current mapping speed is very slow. What parameter in the voxl-mapper config map can I change in order to incease the mapping speed?
