    On the Voxl2, the M0135 only recognizes the cameras on the JL connector, but not on the JU connector.

    Ask your questions right here!
    1
    1
    10
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • Z
      zaimin78
      last edited by

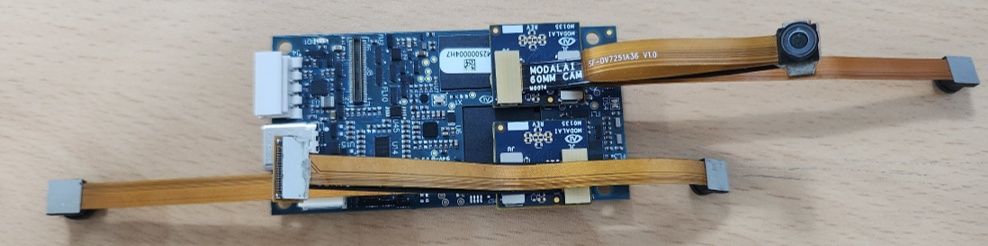

      I am trying to connect four OV7251 cameras to the Voxl2 using the M0135.

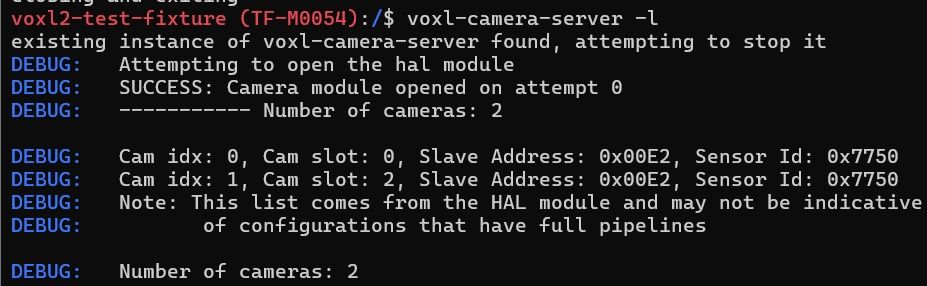

      I connected them to J6 and J7, but the cameras are only recognized on the JL connector.

      I would like to know what the problem is and how to resolve it.

      • I have cross-tested the cameras and cables and confirmed that they are functioning correctly.


      1 Reply Last reply Reply Quote 0
